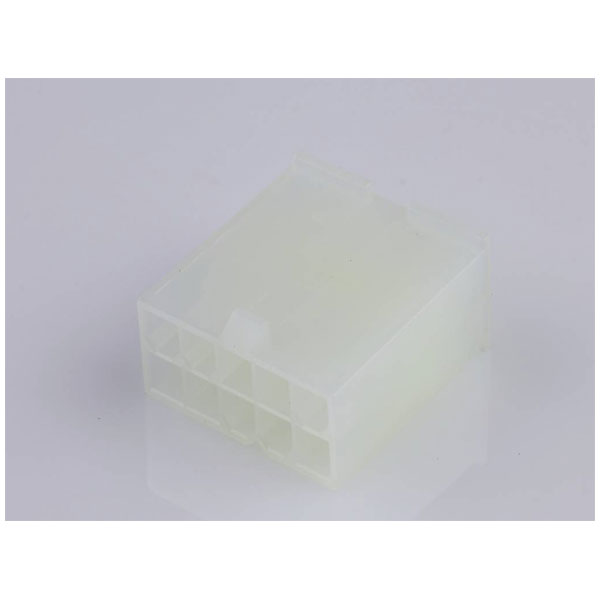

Molex 39013103 Mini-fit Jr. Socket Housing 10 Pins 4.2mm Pitch

Molex
Order Code:

05-3496

Brand: Molex MPN: 39013103 EAN-13: 2050007106999
Qty Unit Price (Ex VAT)
20+ £0.370
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
292 in stock, despatched in 4 working days

Molex socket housing cable 39013103 features a total of 10 pins with contact spacing of 4.2 mm. It is ideal for creating reliable electrical connections in industrial and consumer electronic applications. Suitable for use where secure and durable wiring is required.
Type Socket housing cable
Pitch 4.20mm
Number of Ways 10
Number of Rows 2
Application Power, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 10
Color resin Natural
Colour Ecru
Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information.
Connector Type Plug
CS 4.2mm
Csa LR19980
Delivery unit 2400
Design registration eligibility false
Elv status Not saleable
Engineering number 5559-10P1
Engineering Part No 5559-10P1
Engineering Series Name MINIFIT JR PLUG HSG
Engineering Series No 05559
First published date 2007-05-16
Flammability 94V-2
G a d s l/ i m d s Not Relevant
Gender Plug
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Semi-finished product
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 16800
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 2.830/g
Nominal Current 13A
Nominal current - rounded value 13A
Packaging Type Bag
Panel mount No
Pitch termination interface 4.20mm
Polarized to mating part Yes
Primary pack qty 2400
Product name Mini-Fit Jr.
Product number display 39013103
Product number hyphen 39-01-3103
Product number sap 0039013103
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 5559
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800755527995
