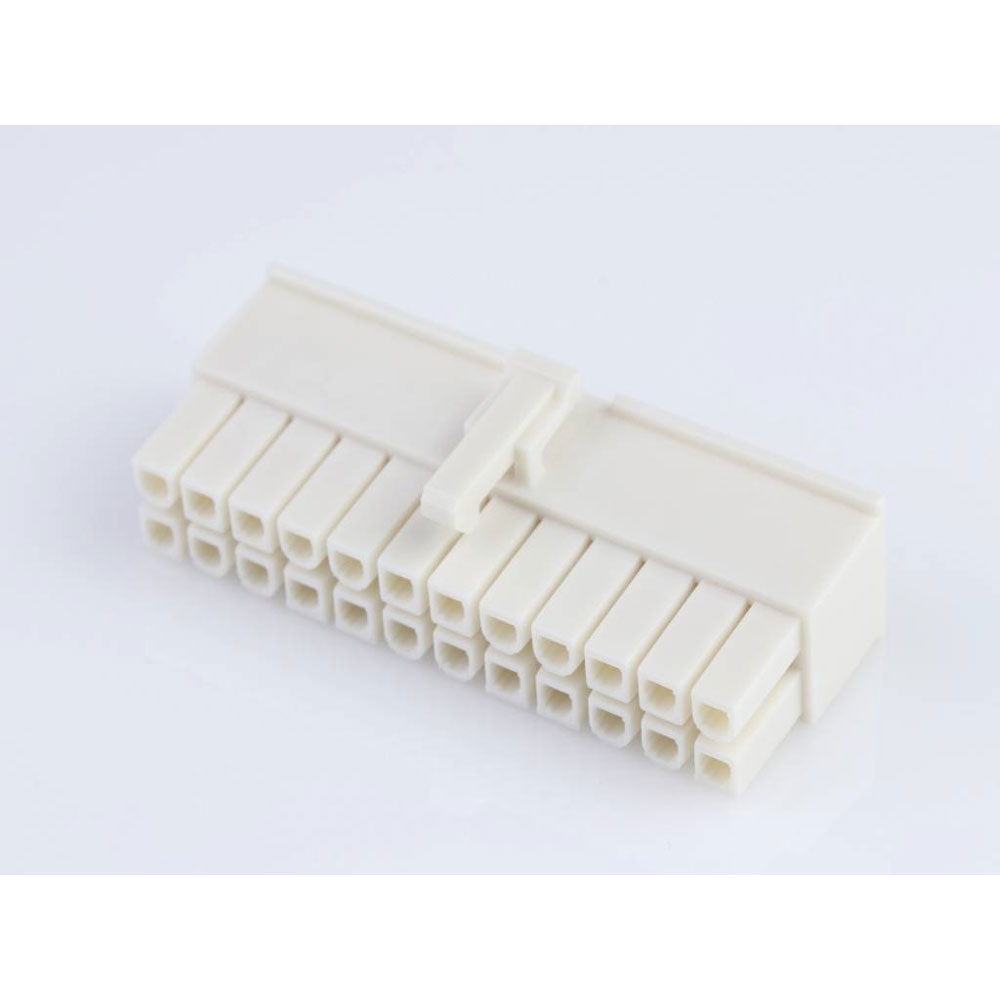

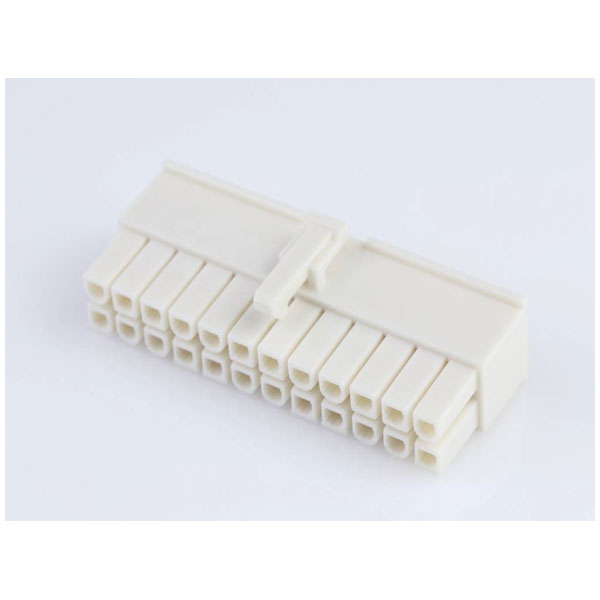

Molex manufactures the 39012245 socket housing cable, which features a total of 24 pins with 4.2 mm contact spacing. This component is typically used for creating secure electrical connections in electronic devices, appliances, or automotive applications. The part is sold in single units, packaged in a bag.
| Type |
Socket housing cable |
| Pitch |
4.20mm |
| Number of Ways |
24 |
| Number of Rows |
2 |
| Application |
Power, Wire-to-Board, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
24 |
| Color resin |
Natural |
| Colour |
Ecru |
| Comments |
Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information. |
| Connector Type |
Socket |
| CS |
4.2mm |
| Csa |
LR19980 |
| Delivery unit |
800 |
| Design registration eligibility |
false |
| Elv status |
Not Relevant |
| Engineering number |
5557-24R-210 |
| Engineering Part No |
5557-24R-210 |
| Engineering Series Name |
MINIFIT JR RECEPT HS |
| Engineering Series No |
05557 |
| First published date |
2007-05-16 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 33 |
| Gender |
Receptacle |
| Glow wire capable |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
3200 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
4.752/mg |
| Nominal Current |
13A |
| Nominal current - rounded value |
13A |
| Packaging Type |
Bag |
| Panel mount |
No |
| Pitch termination interface |
4.20mm |
| Polarized to mating part |
Yes |
| Product name |
Mini-Fit Jr. |
| Product number display |
39012245 |
| Product number hyphen |
39-01-2245 |
| Product number sap |
0039012245 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
5557 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +105°C |
| Ul |
E29179 |
| Upc |
800753694439 |
