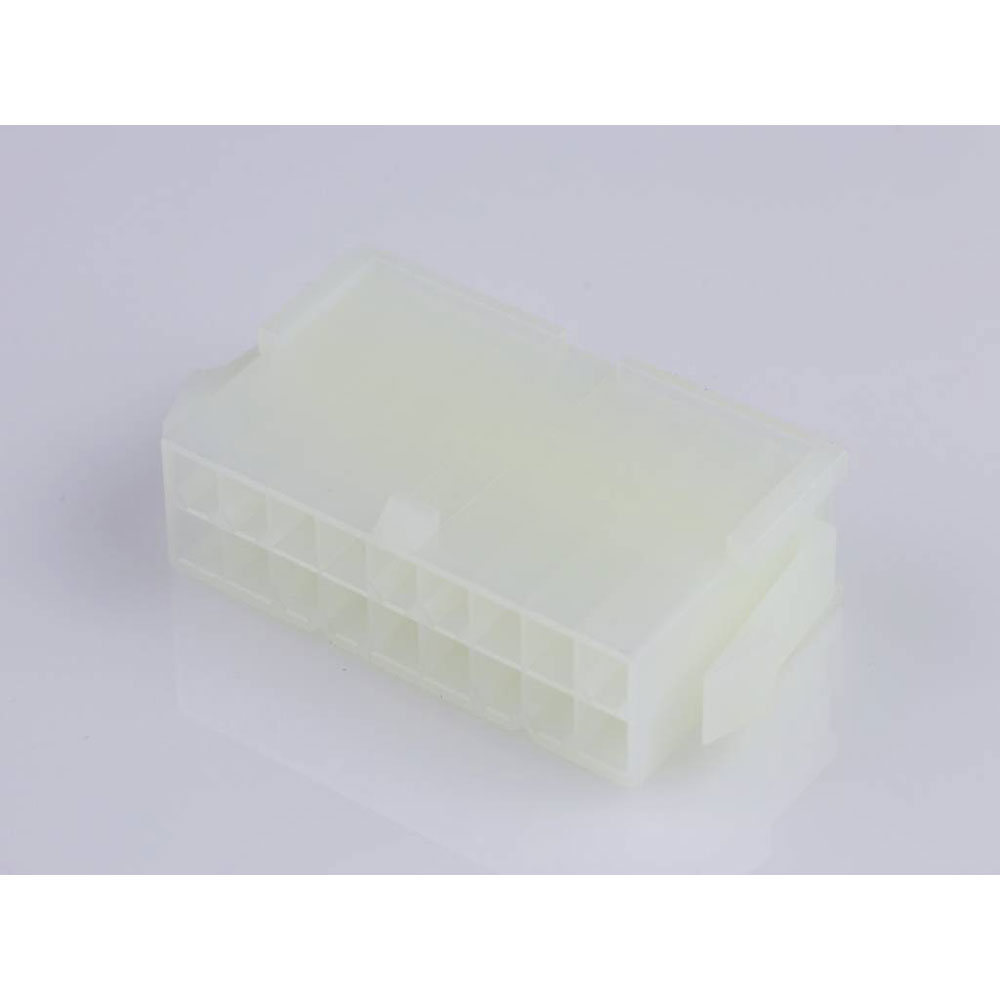

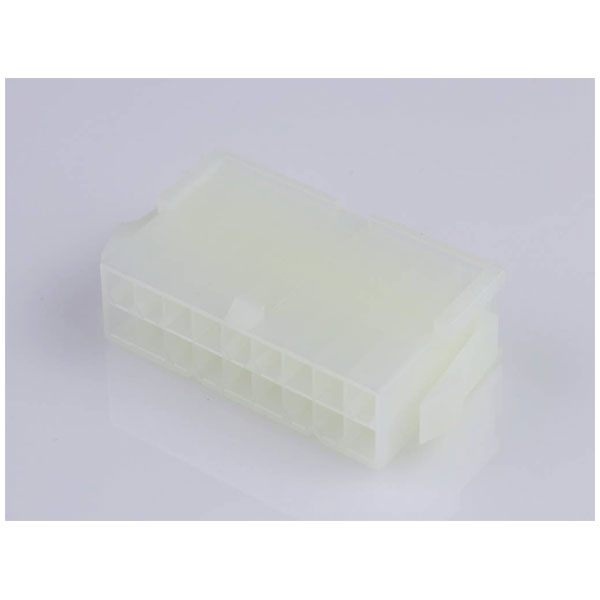

Molex 39012181 Mini-fit Jr. Plug Housing 18 Circuits Panel Mounts

Molex
Order Code:

05-3473

Brand: Molex MPN: 39012181 EAN-13: 2050007328346
Qty Unit Price (Ex VAT)
5+ £1.01
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
70 in stock, despatched in 4 working days

Molex's Pin Housing Cable 39012181 is a durable connector component designed for secure electrical connections. It features a user-friendly assembly suitable for various cable sizes. Typical applications include automotive, industrial, and consumer electronics for reliable performance.
Type Pin housing cable
Pitch 4.20mm
Number of Rows 2
Application Power, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 18
Colour resin Natural
Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information.
Csa LR19980
Delivery unit 1000
Design registration eligibility false
ELV status Not Relevant
Engineering number 5559-18P
Engineering Part No 5559-18P
Engineering Series Name MINIFIT JR PLUG HSG
Engineering Series No 05559
First published date 2007-05-16
Flammability 94V-2
G a d s l/ i m d s Not Relevant
Gender Plug
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Finished Goods
Minimum line quantity 7000
Net weight 5288.300/mg
Packaging Type Bag
Panel mount Yes
Pitch termination interface 4.20mm
Polarized to mating part Yes
Product name Mini-Fit Jr.
Product number display 39012181
Product number hyphen 39-01-2181
Product number sap 0039012181
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 5559
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800753583993
