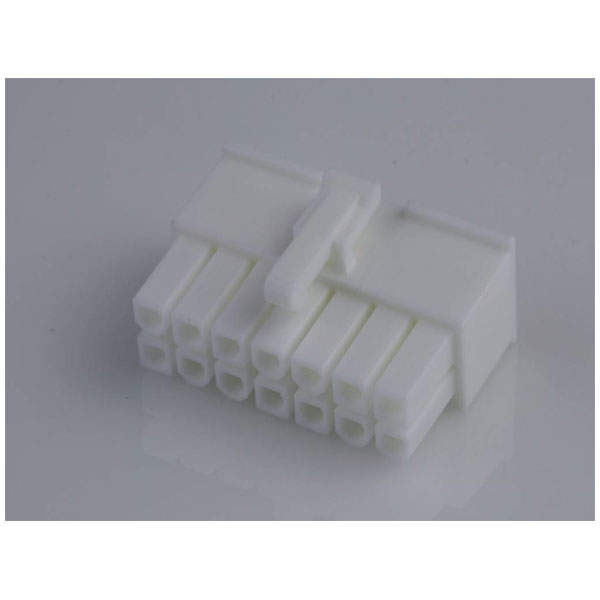

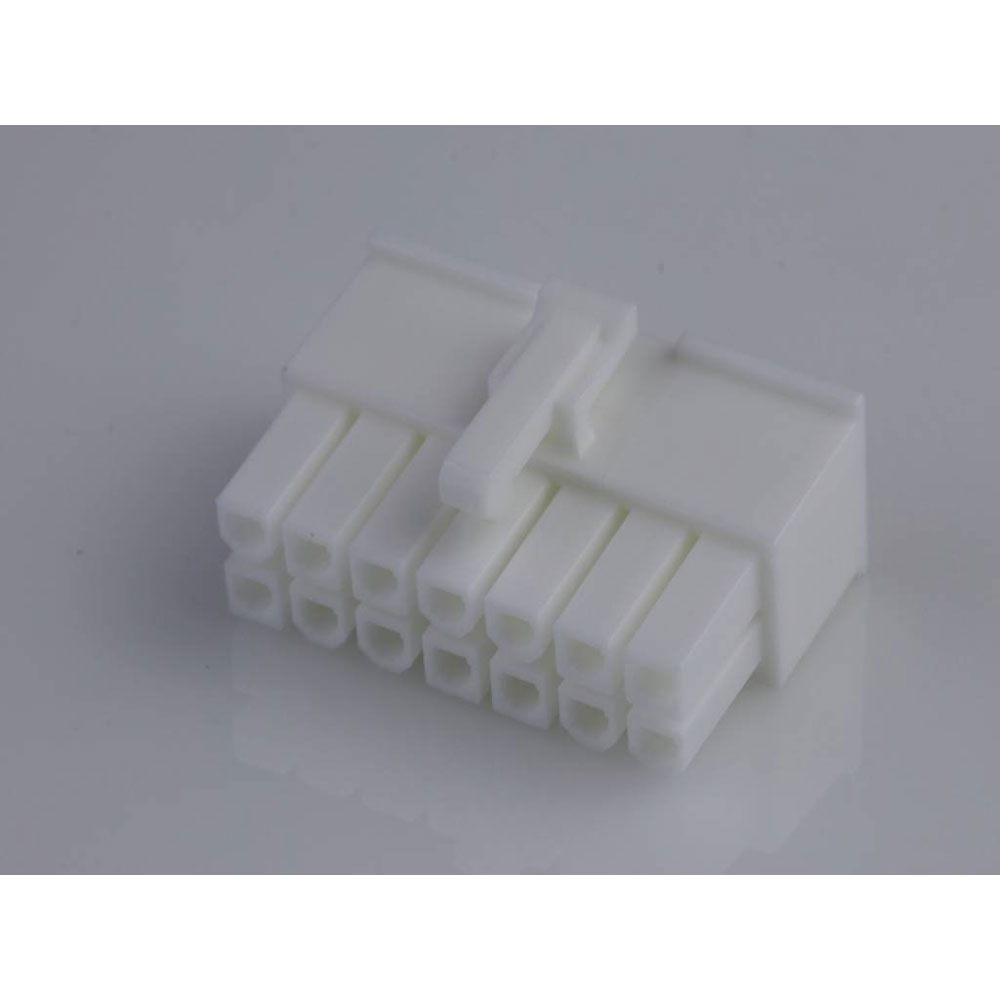

Molex 39012145 Mini-fit Jr. Receptacle Housing 14 Circuits Ul 94v-0

Molex
Order Code:

05-3467

Brand: Molex MPN: 39012145 EAN-13: 2050007328339
Qty Unit Price (Ex VAT)
10+ £0.568
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
243 in stock, despatched in 4 working days

The Molex socket housing cable 39012145, manufactured by Molex, features a robust design for secure electrical connections. It is typically used in various electronic applications where reliable connectivity is essential. This one-piece component is ideal for custom cable assemblies in both industrial and consumer electronics markets.
Type Socket housing cable
Pitch 4.20mm
Number of Rows 2
Application Power, Wire-to-Board, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 14
Color resin Natural
Comments Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 series terminals crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current derating information.
Csa LR19980
Delivery unit 2000
Design registration eligibility false
Elv status Not Relevant
Engineering number 5557-14R-210
Engineering Part No 5557-14R-210
Engineering Series Name MINIFIT JR RECEPT HS
Engineering Series No 05557
First published date 2007-05-16
Flammability 94V-0
G a d s l/ i m d s Not Relevant
Gender Receptacle
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Material resin Nylon
Material type Finished Goods
Minimum line quantity 8000
Net weight 2.986/mg
Packaging Type Bag
Panel mount No
Pitch termination interface 4.20mm
Polarized to mating part Yes
Product name Mini-Fit Jr.
Product number display 39012145
Product number hyphen 39-01-2145
Product number sap 0039012145
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 5557
Ro h s status Compliant per EU 2015/863
Sampleable True
Stackable No
Taxonomy Connector Housings
Temperature range operating -40° to +105°C
Ul E29179
Upc 800754315197
