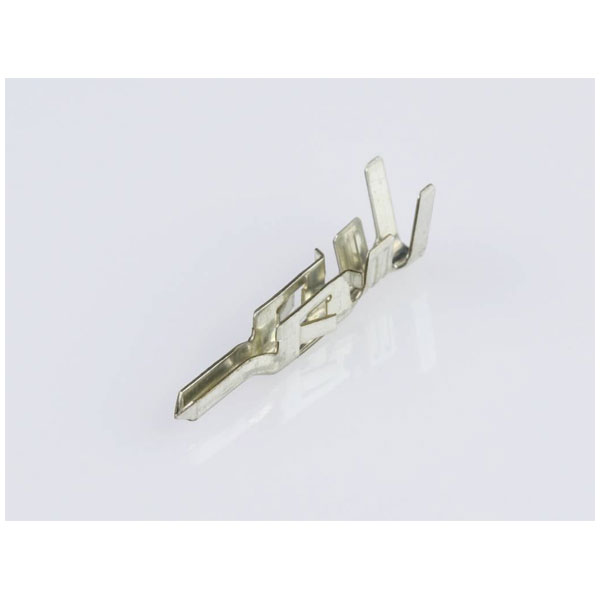

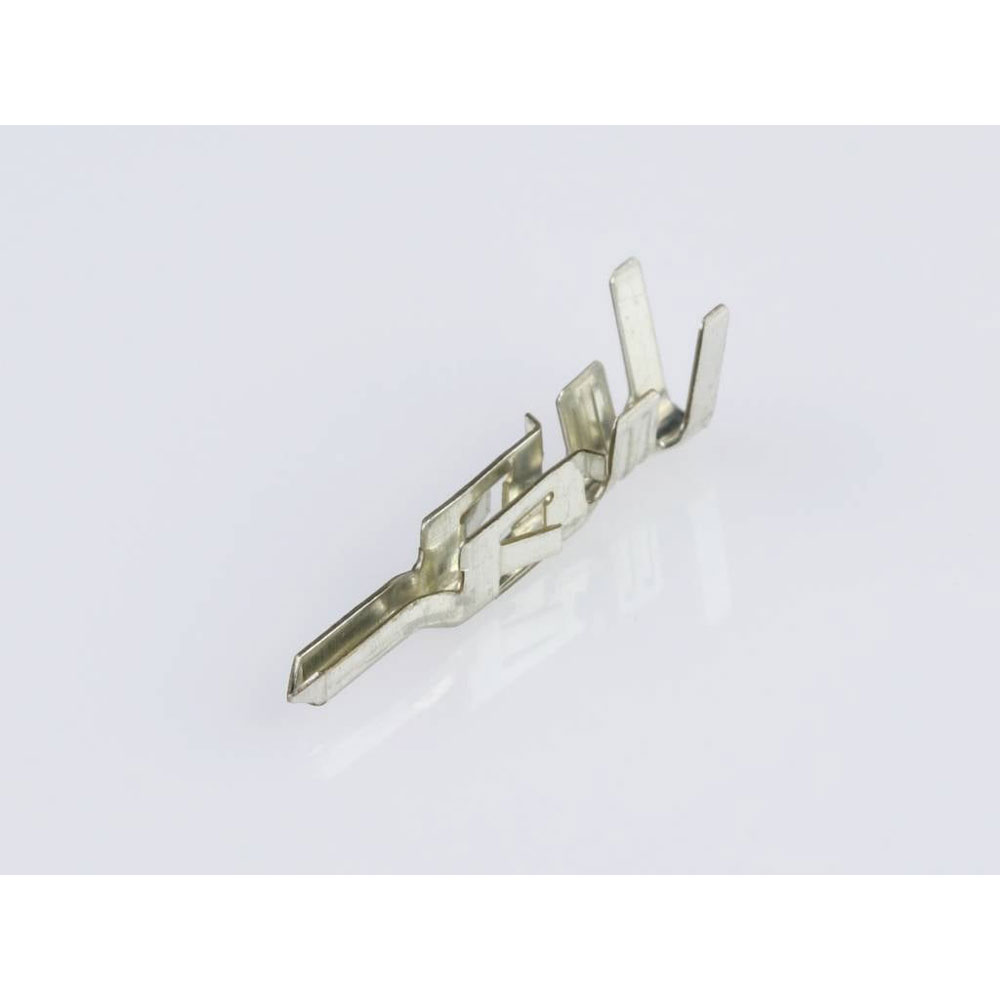

Molex 39000067 Mini-fit Male Crimp Terminal Tin 22-28 AWG 1Pc

Molex
Order Code:

05-3418

Brand: Molex MPN: 39000067 EAN-13: 2050009141967
Qty Unit Price (Ex VAT)
50+ £0.086
1000+ £0.084
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
4,427 in stock, despatched in 4 working days

Molex's Mini Fit 39000067 is a crimp contact designed for reliable electrical connections. It is commonly used in automotive and electronic applications due to its high performance and secure fit. This component ensures stability and efficiency in a variety of circuit systems.
Type Crimp contact
Wire Gauge 28 - 22
Application Power, Wire-to-Wire
Base unit of measure PC
Base unit of measure desc piece
China ro h s status Compliant per SJ/T 11365-2006
Connector Type Plug
Contact Finish Phosphor bronze tin plated
Current maximum per contact 9.0A
Delivery unit 24000
Design registration eligibility false
Durability mating cycles max 30
ELV status Not Relevant
Engineering number 5558-PBT2
First published date 2007-05-16
G a d s l/ i m d s Compliant with Exemption 44; 34
Gender Male
H f l h status Low-Halogen per IEC 61249-2-21
Material metal Phosphor Bronze
Material plating mating Matte Tin
Material plating termination Matte Tin
Material type Finished Goods
Minimum line quantity 24000
Misc Attribute MOL Power & Signal Sol.
Net weight 0.120/g
Packaging Type Tape on Full reel
Plating min mating 0.900µm
Plating min termination 0.900µm
Primary pack qty 6000
Product name Mini-Fit
Product number display 39000067
Product number hyphen 39-00-0067
Product number sap 0039000067
Rated voltage 600V
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 5558
Ro h s status Compliant per EU 2015/863
Sampleable True
Taxonomy Crimp Terminals
Termination interface style Crimp or Compression
Test current 9A
Upc 800754394024
Voltage maximum 600V
Wire insulation diameter 0.90-1.80mm
Wire size awg 22, 24, 26, 28
