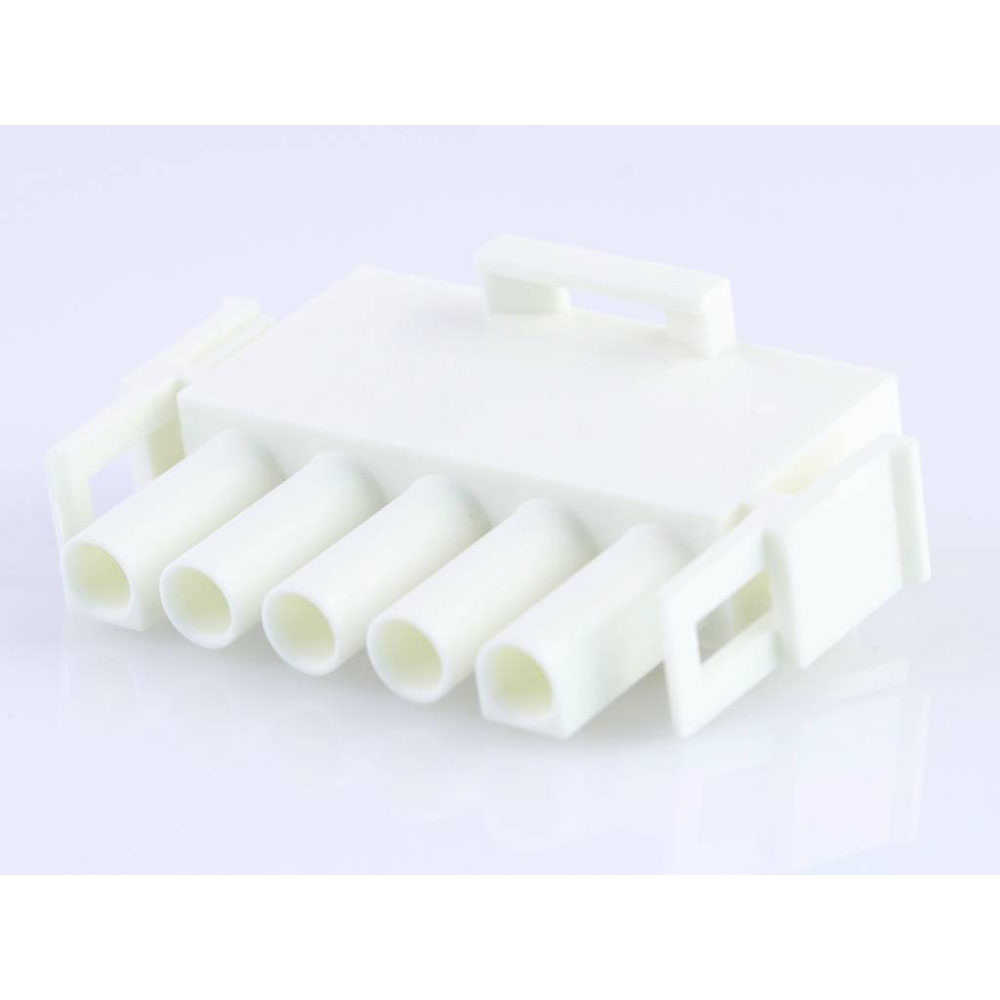

The Molex socket housing cable, model 366430010, features five pins with a contact spacing of 6.35 mm. This component is typically used in applications requiring secure electrical connections, and provides durability and reliable performance. It is suitable for various industrial and electronic systems, offering a dependable interface solution.
| Type |
Socket housing cable |
| Pitch |
6.35mm |
| Number of Ways |
5 |
| Number of Rows |
1 |
| Application |
Power, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
5 |
| Color resin |
Natural |
| Colour |
Ecru |
| Comments |
This Molex product is manufactured from material that has the following ratings, tested by independent agencies: a) A Glow Wire Ignition Temperature (GWIT) of at least 775 deg C per IEC 60695-2-13. b) A Glow Wire Flammability Index (GWFI) above 850 deg C per IEC 60695-2-12 and hence complies with the requirements set out in the International Standard IEC 60335-1 5th edition - household and similar electrical appliances - safety, section 30 Resistance to heat and fire. The customers using this product must determine its suitability for use in their particular application through testing or other acceptable means as described in end-product glow-wire flammability test standard IEC 60695-2-11 and any applicable product end-use standard(s). If it is determined during the customers evaluation of suitability, that higher performance is required, please contact Molex for possible product options. |
| Connector Type |
Plug |
| CS |
6.35mm |
| Csa |
LR19980 |
| Delivery unit |
1000 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering Series Name |
MLX Plug Hsg-Glow Wi |
| Engineering Series No |
36643 |
| First published date |
2016-01-18 |
| Flammability |
94V-2 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Plug |
| Glow wire capable |
Yes |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
No |
| Lock to mating part |
Yes |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+105°C |
| Min. temperature |
-55°C |
| Minimum line quantity |
5000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
4.300/g |
| Nominal Current |
20A |
| Nominal current - rounded value |
20A |
| Packaging Type |
Bag |
| Panel mount |
No |
| Pitch termination interface |
6.35mm |
| Polarized to mating part |
Yes |
| Primary pack qty |
1000 |
| Product name |
MLX |
| Product number display |
366430010 |
| Product number hyphen |
36643-0010 |
| Product number sap |
0366430010 |
| Reach status |
Contains 1,1-(Ethane-1,2-diyl)bis[pentabromobenzene] per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
36643 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
No |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-55° to +105°C |
| Ul |
E29179 |
| Upc |
887191072647 |
