Molex 353620450 Sherlock Wire-to-board Header 2mm 4-circuit Vertical

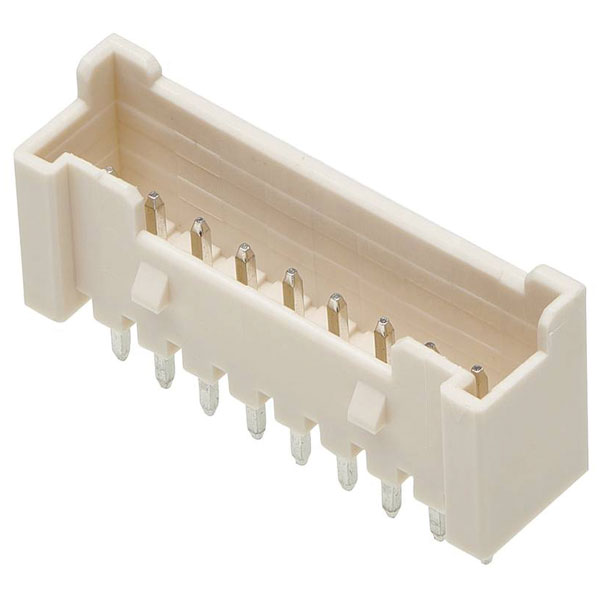

Image Representative of Range

Molex 353620450 Sherlock Wire-to-board Header 2mm 4-circuit Vertical

Molex
Order Code:

05-3387

Brand: Molex MPN: 353620450 EAN-13: 2050007107538
Qty Unit Price (Ex VAT)
20+ £0.298
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
111 in stock, despatched in 4 working days

The Molex built-in pin strip features 4 pins with a contact spacing of 2 mm, designed for precise electronic connections. Manufactured by Molex, this standard pin strip is ideal for compact circuit board layouts. It is commonly used in electronic assemblies where space efficiency and reliable connectivity are crucial.
Pitch 2mm
No. of Rows 1
No. of Ways 4
Application Signal, Wire-to-Board
Base unit of measure PC
Base unit of measure desc piece
Board contact surface Tin
Breakaway No
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits loaded 4
Circuits maximum 4
Color resin Natural
Component type PCB Header
Connection Soldering
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Connector System wire-to-board
CS 2mm
Csa LR19980
Current maximum per contact 2.0A
Delivery unit 20000
Design registration eligibility true
Durability mating cycles max 30
ELV status Not Relevant
Engineering number 35362-0450
Engineering Part No 35362-0450
Engineering Series Name Hdr Str
Engineering Series No 35362
Factory colour Ecru
First mate last break No
First published date 2007-06-08
G a d s l/ i m d s Compliant with Exemption 44
Glow wire capable No
Guide to mating part No
H f l h status Low-Halogen per IEC 61249-2-21
Keying to mating part No
Lock to mating part Yes
Mated height 8.50mm
Material plating mating Tin
Material plating termination Tin
Material resin Nylon
Material type Finished Goods
Max. temperature +105°C
Min. temperature -40°C
Minimum line quantity 20000
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 0.285/g
Nominal Current 2A
Nominal current - rounded value 2A
Nominal Voltage 125V
Number of Rows 1
Orientation Vertical
Packaging Type Bag
Pc tail length 3.30mm
Pcb locator No
Pcb retention Yes
Pcb thickness recommended 1.60mm
Pitch mating interface 2.00mm
Pitch termination interface 2.00mm
Polarized to mating part Yes
Polarized to pcb No
Primary pack qty 1000
Product name Sherlock
Product number display 353620450
Product number hyphen 35362-0450
Product number sap 0353620450
Reach status Not Contained per D(2024)6225-DC (07 Nov 2024)
Reference series 35362
Replacement part number 532530470
Ro h s status Compliant per EU 2015/863
Sampleable False
Shrouded Partial
Stackable No
Taxonomy PCB Headers and Receptacles
Temperature range operating -40° to +105°C
Termination interface style Through Hole
Type Built-in pin strip (standard)
Ul E29179
Upc 822348259199
Voltage maximum 125V
