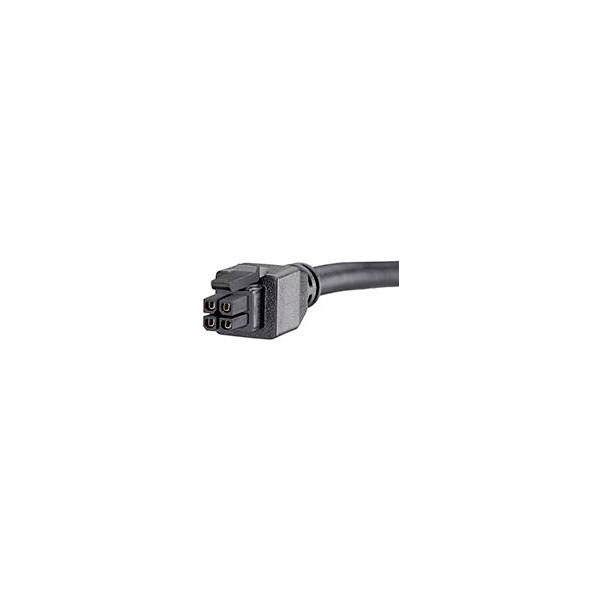

The Molex Socket with braid, model number 2451320410, is designed for robust electrical connectivity. It features enhanced shielding to prevent electromagnetic interference, making it ideal for sensitive electronic applications. Typically used in automotive, industrial, and data communication systems, it ensures reliable performance in high-vibration environments.
| Colour |
Black |
| Length |
1.0m |
| Type |
Socket + braid |
| Application |
Power, Wire-to-Board, Wire-to-Wire |
| Assembly configuration |
Dual Ended Connectors |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Cable Length |
1.0m |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
4 |
| Circuits maximum |
4 |
| Color resin |
Black |
| Connector to connector |
Micro-Fit 3.0 Both Ends |
| Current maximum per contact |
5.0A |
| Delivery unit |
50 |
| Design registration eligibility |
true |
| Elv status |
Compliant per 2000/53/EC |
| Engineering number |
795161041 |
| Engineering Series Name |
Micro-fit,Overmolded |
| Engineering Series No |
245132 |
| First published date |
2016-09-27 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Female-Female |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
Yes |
| Material metal |
Phosphor Bronze |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Minimum line quantity |
500 |
| Net weight |
53.600/g |
| Number of Rows |
2 |
| Over molded |
Yes |
| Packaging Type |
Bag |
| Pitch mating interface |
3.00mm |
| Plating min mating |
1.016µm |
| Plating min termination |
1.016µm |
| Primary pack qty |
1 |
| Product name |
Micro-Fit 3.0 |
| Product number display |
2451320410 |
| Product number hyphen |
245132-0410 |
| Product number sap |
2451320410 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
245132 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
False |
| Singleended |
No |
| Taxonomy |
Power and Signal Cable Assemblies |
| Termination interface style |
Crimp or Compression |
| Upc |
889056858472 |
| Voltage maximum |
300V AC |
| Wire cable type |
UL 2464 |
| Wire size awg |
20 |
