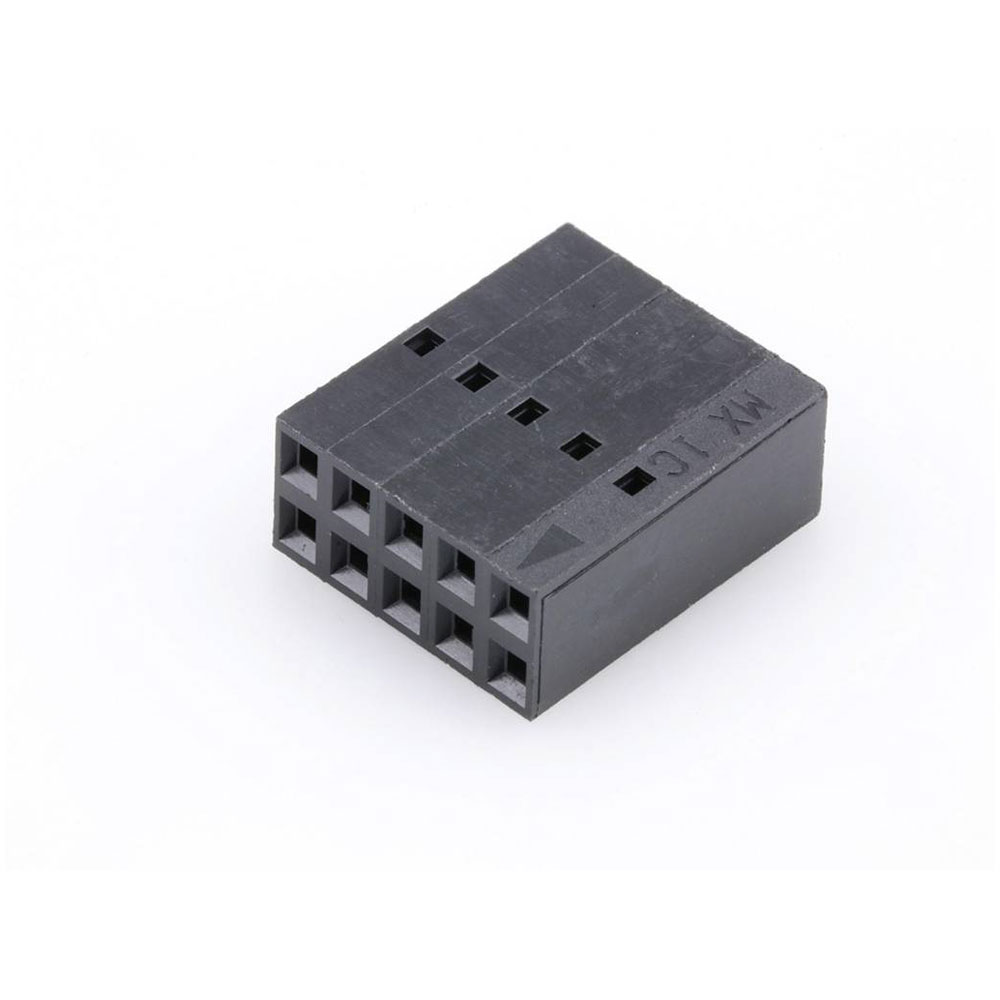

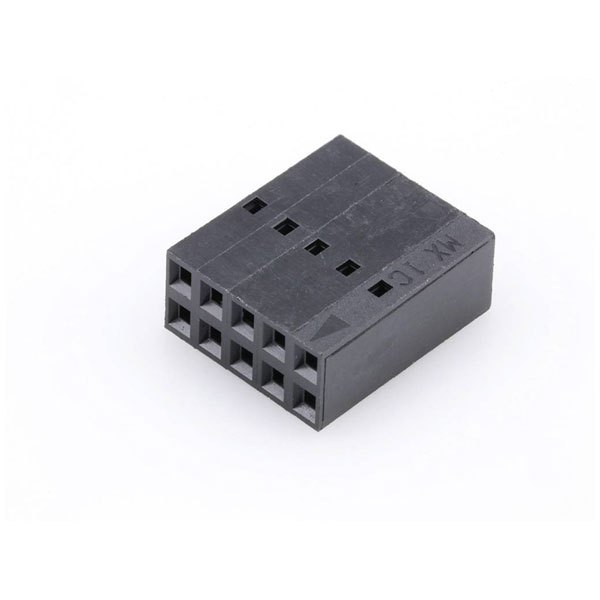

The Molex socket housing cable, model 22552101, features a total of 10 pins with a contact spacing of 2.54 mm. This component, commonly used in electronic and electrical applications, is ideal for creating secure connections in circuit assemblies. It is supplied in a pack containing one piece, typically housed in a bag for protection.
| Type |
Socket housing cable |
| Pitch |
2.54mm |
| Number of Ways |
10 |
| Number of Rows |
2 |
| Application |
Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Polyester |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
10 |
| Color resin |
Black |
| Colour |
Black |
| Comments |
Version A |
| Connector Type |
Socket |
| CS |
2.54mm |
| Csa |
LR19980 |
| Delivery unit |
7500 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering number |
70450-0004 |
| Engineering Part No |
70450-0004 |
| Engineering Series Name |
DUAL ROW CRIMP HOUSI |
| Engineering Series No |
70450 |
| First published date |
2007-05-16 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Receptacle |
| Glow wire capable |
No |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Max. temperature |
+105°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
7500 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
0.850/g |
| Packaging Type |
Bag |
| Panel mount |
No |
| Primary pack qty |
500 |
| Product name |
SL |
| Product number display |
22552101 |
| Product number hyphen |
22-55-2101 |
| Product number sap |
0022552101 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
70450 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Stackable |
Yes |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +105°C |
| Ul |
E29179 |
| Upc |
800753626492 |
