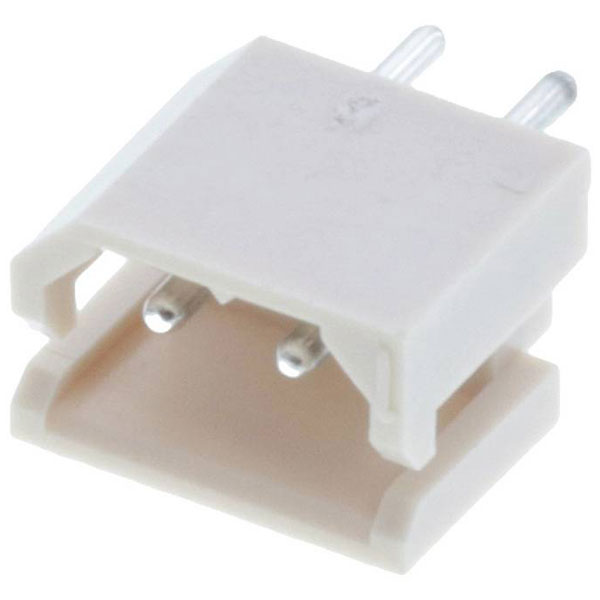

Molex 22035025 Mini-spox PCB Header 2 Pins 2.5mm Pitch Tin Plated

Molex
Order Code:

05-3233

Brand: Molex MPN: 22035025 EAN-13: 2050007103356
Qty Unit Price (Ex VAT)
25+ £0.173
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
2,323 available to back orderBack-order availability date - 10/01/2026

Molex manufactures the Built-in pin strip (standard), featuring 2 pins with a contact spacing of 2.5 mm, identified by the part number 22035025. The product is typically used in electronic connections where reliable and compact pin strips are required. Common applications include use in consumer electronics and communication devices.
Type Built-in pin strip (standard)
Number of Positions 2
Number of Rows 1
Board contact surface Tin
Case Material Nylon (NL)
Coating thickness (PCB side) 4.064µm
Colour Ecru
Connection Soldering
Connector coating thickness 4.064µm
Connector contact surface Tin
Connector orientation Perpendicular (to the PCB)
Connector system wire-to-board
Cross Section 2.5mm
Engineering Part No 5267-02A
Engineering Series Name SGL Hdr Str
Engineering Series No 05267
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute Molex MOL Power & Signal Sol.
Nominal Current 3A
Nominal Voltage 250V
Packaging Type Bag
