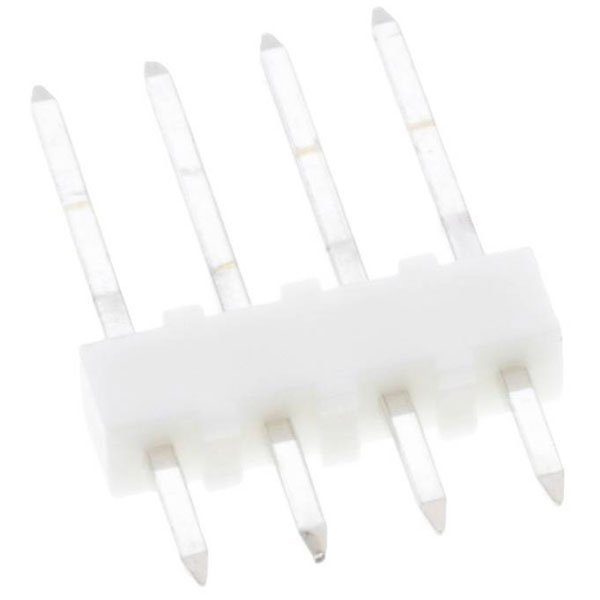

Molex's built-in pin strip, model 22032041, features a standard configuration with a total of four pins. The contact spacing is 2.54 mm, making it suitable for various connection applications. Typically used in electronic assemblies, this component is ideal for circuit board connections and prototyping.
| Pitch |
2.54mm |
| No. of Rows |
2.54mm |
| No. of Ways |
4 |
| Application |
Board-to-Board, Signal, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Breakaway |
No |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
4 |
| Circuits maximum |
4 |
| Color resin |
Natural (White) |
| Component type |
PCB Header |
| Connection |
Soldering |
| Connector coating thickness |
5.08µm |
| Connector contact surface |
Tin |
| Connector orientation |
Perpendicular (to the PCB) |
| Contact Finish |
Brass |
| CS |
2.54mm |
| Csa |
LR19980 |
| Current maximum per contact |
4.0A |
| Delivery unit |
20000 |
| Design registration eligibility |
false |
| Durability mating cycles max |
25 |
| Duration at max process temperature seconds |
5 |
| Elv status |
Not Relevant |
| Engineering number |
A-4030-04A197 |
| Engineering Part No |
A-4030-04A197 |
| Engineering Series Name |
100 HDR FLT STR SQ N |
| Engineering Series No |
04030 |
| Factory colour |
Ecru white |
| First mate last break |
No |
| First published date |
2007-06-01 |
| Flammability |
94V-0 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 33 |
| Glow wire capable |
No |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Lead free process capability |
WAVE |
| Lock to mating part |
No |
| Material metal |
Brass |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max cycles at max process temperature |
1 |
| Minimum line quantity |
60000 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
0.274/g |
| Nominal Current |
4A |
| Nominal current - rounded value |
4A |
| Nominal Voltage |
500V |
| Number of Rows |
1 |
| Orientation |
Vertical |
| Packaging Type |
Bag |
| Pc tail length |
3.43mm |
| Pcb locator |
No |
| Pcb retention |
No |
| Pcb thickness recommended |
1.60mm |
| Pitch mating interface |
2.54mm |
| Pitch termination interface |
2.54mm |
| Plating min mating |
5.080µm |
| Polarized to mating part |
No |
| Polarized to pcb |
No |
| Primary pack qty |
2000 |
| Process temperature max c |
235 |
| Product name |
KK 254 |
| Product number display |
22032041 |
| Product number hyphen |
22-03-2041 |
| Product number sap |
0022032041 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
4030 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shrouded |
No |
| Stackable |
Yes |
| Taxonomy |
PCB Headers and Receptacles |
| Temperature range operating |
See Product Specification |
| Termination interface style |
Through Hole |
| Type |
Built-in pin strip (standard) |
| Ul |
E29179 |
| Upc |
800753591851 |
| Voltage maximum |
500V |
