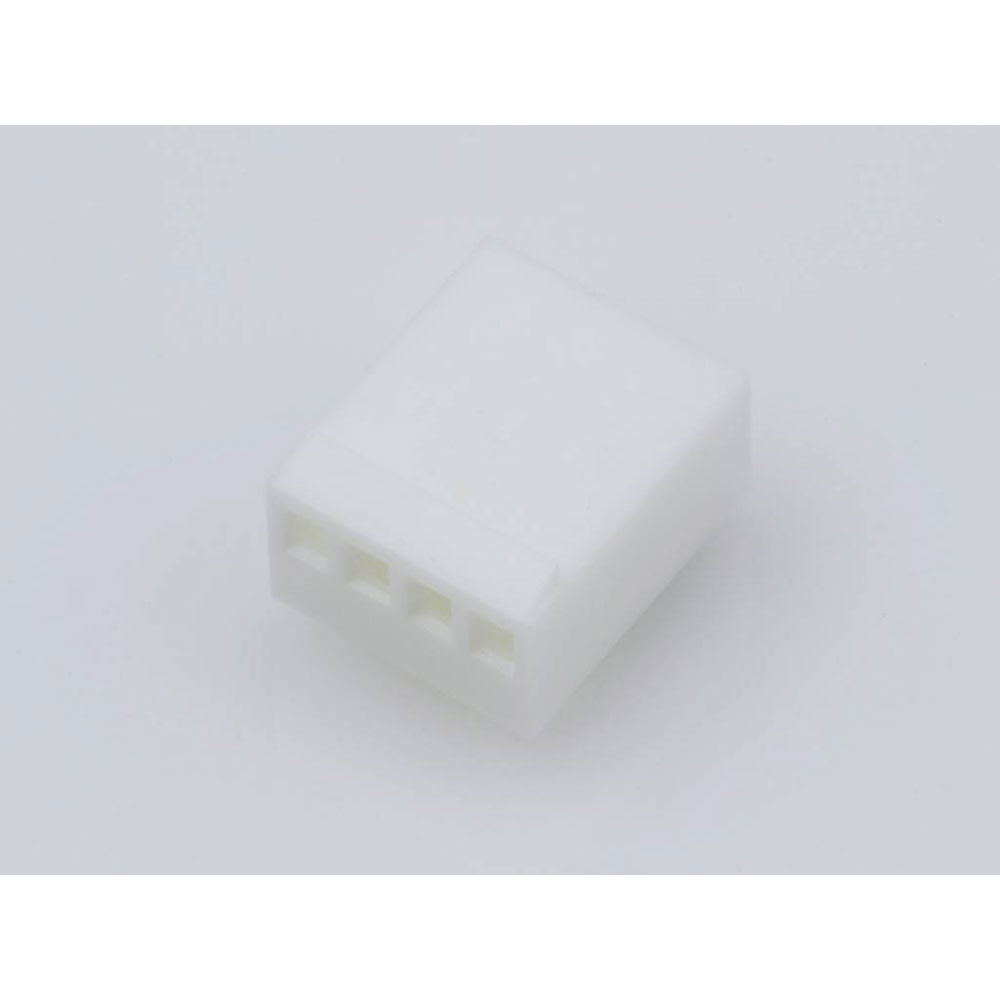

Molex 22012047 KK 254 Socket Housing 4 Pins 2.54 Mm Crimp Housing

Molex manufactures the socket housing cable with a total of four pins and a contact spacing of 2.54 mm. This component is ideal for creating secure electrical connections in various electronic applications. It is commonly used in consumer electronics, automotive systems, and industrial equipment.

Type	Socket housing cable
Pitch	2.54mm
Number of Ways	4
Number of Rows	1
Mounting Type	Cable mount
Mounting Direction	Straight
Application	Signal, Wire-to-Board
Base unit of measure	PC
Base unit of measure desc	piece
Case Material	Nylon (NL)
China ro h s status	Compliant per SJ/T 11365-2006
Circuits maximum	4
Color resin	Natural (White)
Colour	Ecru white
Connector Type	Socket
CS	2.54mm
Csa	LR19980
Delivery unit	5000
Design registration eligibility	false
ELV status	Compliant per 2000/53/EC
Engineering number	2695-04R
Engineering Part No	2695-04R
Engineering Series Name	.100 CR TRM HSG NYL
Engineering Series No	02695
First published date	2007-05-16
Flammability	94V-0
G a d s l/ i m d s	Not Relevant
Gender	Receptacle
Glow wire capable	No
H f l h status	Low-Halogen per IEC 61249-2-21
Lock to mating part	Yes
Material resin	Nylon
Material type	Finished Goods
Minimum line quantity	20000
Misc Attribute	Molex MOL Power & Signal Sol.
Net weight	0.434/g
Packaging Type	Bag
Panel mount	No
Pitch termination interface	2.54mm
Primary pack qty	5000
Product name	KK 254
Product number display	22012047
Product number hyphen	22-01-2047
Product number sap	0022012047
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	2695
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Stackable	No
Taxonomy	Connector Housings
Temperature range operating	See Product Specification
Ul	E29179
Upc	800753593701
