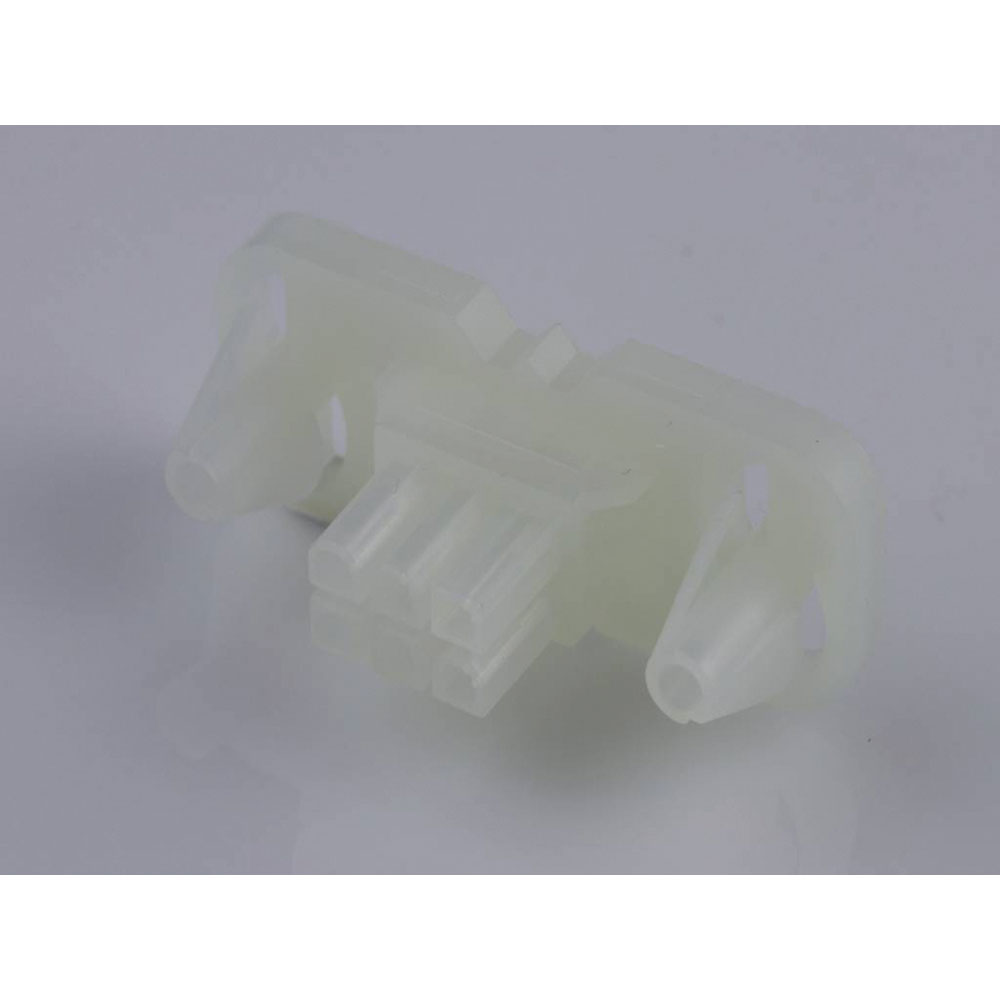

The Molex Built-in SIL socket (standard) with product code 15246060 features a 6-pin configuration, offering reliable electrical connections. Typically used in circuit assembly, this socket is ideal for use in various electronic applications. Known for its durability, the Molex MOL 15246060 is a trusted component in the industry.
| Type |
Built-in SIL socket (standard) |
| Number of Positions |
6 |
| Pitch |
4.2mm |
| Number of Rows |
2 |
| Application |
Board-to-Board, Power, Wire-to-Board |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Breakaway |
No |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
6 |
| Circuits maximum |
6 |
| Color resin |
Natural |
| Comments |
Current = 13A max. per circuit when header is mated to a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp Terminal Crimped to 16 AWG wire. See Molex product specification PS-45750-001 for additional current de-rating information. |
| Component type |
PCB Header |
| Csa |
LR19980 |
| Current maximum per contact |
13.0A |
| Delivery unit |
2720 |
| Design registration eligibility |
true |
| Durability mating cycles max |
30 |
| Duration at max process temperature seconds |
5 |
| ELV status |
Not Relevant |
| Engineering number |
A-42404-06A1 |
| Engineering Part No |
A-42404-06A1 |
| Engineering Series Name |
MINI-FIT BRD/BRD BLM |
| Engineering Series No |
42404 |
| First mate last break |
No |
| First published date |
2007-06-01 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 33 |
| Glow wire capable |
No |
| Guide to mating part |
Yes |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Lead free process capability |
WAVE |
| Lock to mating part |
Yes |
| Material metal |
Brass |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max cycles at max process temperature |
1 |
| Minimum line quantity |
2720 |
| Net weight |
2.976/g |
| Orientation |
Parallel (to the PCB) |
| Packaging Type |
Tray |
| Pc tail length |
3.30mm |
| Pcb locator |
Yes |
| Pcb retention |
Yes |
| Pcb thickness recommended |
1.80mm |
| Pitch mating interface |
4.20mm |
| Plating min mating |
2.540µm |
| Plating min termination |
2.540µm |
| Polarized to mating part |
Yes |
| Polarized to pcb |
Yes |
| Primary pack qty |
85 |
| Process temperature max c |
240 |
| Product name |
Mini-Fit BMI |
| Product number display |
15246060 |
| Product number hyphen |
15-24-6060 |
| Product number sap |
0015246060 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
42404 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Shrouded |
Partial |
| Stackable |
No |
| Taxonomy |
PCB Headers and Receptacles |
| Temperature range operating |
-40° to +105°C |
| Termination interface style |
Through Hole |
| Ul |
E29179 |
| Upc |
800753689077 |
| Voltage maximum |
600V |
