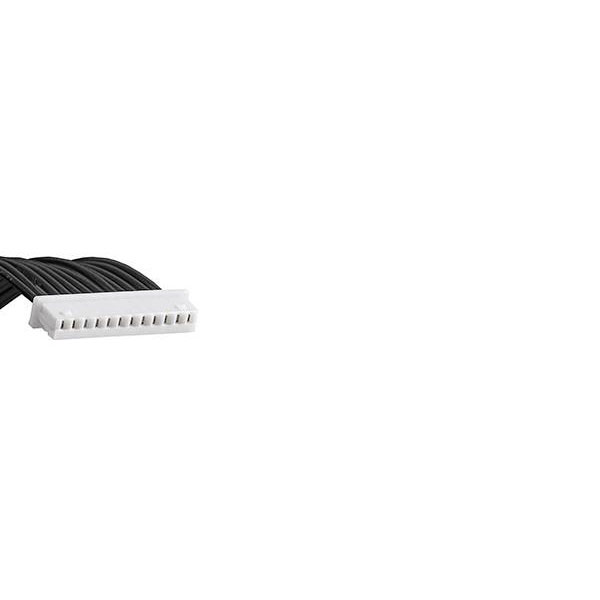

The Molex socket housing cable, with part number 151341201, features a total of 12 pins and a contact spacing of 1.25 mm. Typically used in electronic and electrical applications, it provides reliable connections suitable for various devices. This product is ideal for projects requiring compact and efficient wiring solutions.
| Type |
Socket housing cable |
| Pitch |
1.25mm |
| Number of Ways |
12 |
| Number of Rows |
1 |
| Application |
Signal, Wire-to-Board, Wire-to-Wire |
| Assembly configuration |
Dual Ended Connectors |
| AWG max. |
28 |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Cable Length |
100.00mm |
| Case Material |
Polyester |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
12 |
| Circuits maximum |
12 |
| Coating thickness (PCB side) |
0.914µm |
| Color resin |
Natural |
| Colour |
Ecru |
| Connector coating thickness |
0.889µm |
| Connector contact surface |
Tin |
| Connector to connector |
PicoBlade-to-PicoBlade |
| Connector Type |
Socket |
| Contact Material |
Phosphor bronze |
| CS |
1.25mm |
| Current maximum per contact |
1.0A |
| Delivery unit |
1200 |
| Design registration eligibility |
true |
| Elv status |
Not Relevant |
| Engineering Series Name |
Picoblade OTS Discre |
| Engineering Series No |
15134 |
| First published date |
2007-05-15 |
| G a d s l/ i m d s |
Not Relevant |
| Gender |
Female-Female |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
Yes |
| Material metal |
Phosphor Bronze |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Minimum line quantity |
1200 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
2.520/g |
| Nominal Current |
1A |
| Nominal current - rounded value |
1A |
| Nominal Voltage |
125V |
| Over molded |
No |
| Packaging Type |
Bag |
| Plating min mating |
0.889µm |
| Plating min termination |
0.914µm |
| Primary pack qty |
12 |
| Product name |
PicoBlade |
| Product number display |
151341201 |
| Product number hyphen |
15134-1201 |
| Product number sap |
0151341201 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
15134 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
False |
| Singleended |
No |
| Taxonomy |
Power and Signal Cable Assemblies |
| Termination interface style |
Crimp or Compression |
| Upc |
191128412360 |
| Voltage maximum |
125V |
| Wire cable type |
UL 1061 |
| Wire size awg |
28 |
