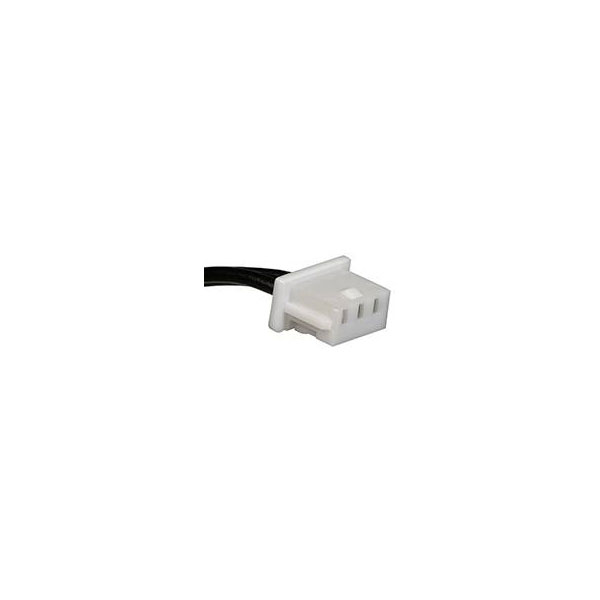

Molex manufactures the socket housing cable, part number 151340302, with 3 pins and a contact spacing of 1.25 mm. This product is typically used in electronic and electrical connections where compact and reliable interfacing is required. It is commonly employed in consumer electronics and automotive applications.
| Type |
Socket housing cable |
| Pitch |
1.25mm |
| Number of Ways |
3 |
| Number of Rows |
1 |
| Mounting Type |
Cable mount |
| Mounting Direction |
Straight |
| Application |
Signal, Wire-to-Board, Wire-to-Wire |
| Assembly configuration |
Dual Ended Connectors |
| AWG max. |
28 |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Board contact surface |
Tin |
| Cable Length |
150.00mm |
| Case Material |
Polyester |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits loaded |
3 |
| Circuits maximum |
3 |
| Coating thickness (PCB side) |
0.914µm |
| Color resin |
Natural |
| Colour |
Ecru |
| Connector coating thickness |
0.889µm |
| Connector contact surface |
Tin |
| Connector to connector |
PicoBlade-to-PicoBlade |
| Connector Type |
Socket |
| Contact Material |
Phosphor bronze |
| CS |
1.25mm |
| Current maximum per contact |
1.0A |
| Delivery unit |
1300 |
| Design registration eligibility |
true |
| ELV status |
Not Relevant |
| Engineering Series Name |
Picoblade OTS Discre |
| Engineering Series No |
15134 |
| First published date |
2019-10-24 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 47; 34 |
| Gender |
Female-Female |
| H f l h status |
Not Low-Halogen per IEC 61249-2-21 |
| Lock to mating part |
Yes |
| Material metal |
Phosphor Bronze |
| Material plating mating |
Tin |
| Material plating termination |
Tin |
| Material resin |
Polyester |
| Material type |
Finished Goods |
| Minimum line quantity |
2600 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
0.900/g |
| Nominal Current |
1A |
| Nominal current - rounded value |
1A |
| Nominal Voltage |
125V |
| Over molded |
No |
| Packaging Type |
Bag |
| Plating min mating |
0.889µm |
| Plating min termination |
0.914µm |
| Primary pack qty |
50 |
| Product name |
PicoBlade |
| Product number display |
151340302 |
| Product number hyphen |
15134-0302 |
| Product number sap |
0151340302 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
15134 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
False |
| Singleended |
No |
| Taxonomy |
Power and Signal Cable Assemblies |
| Termination interface style |
Crimp or Compression |
| Upc |
889056870795 |
| Voltage maximum |
125V |
| Wire cable type |
UL 1061 |
| Wire size awg |
28 |
