Molex 151340300 Picoblade Cable Assembly 3 Pins 1.25mm Spacing

Molex
Order Code:

05-2962

Brand: Molex MPN: 151340300 EAN-13: 2050007099383
Qty Unit Price (Ex VAT)
2+ £2.78
10+ £2.75
25+ £2.74
50+ £2.72
100+ £2.70
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
511 in stock, despatched in 4 working days

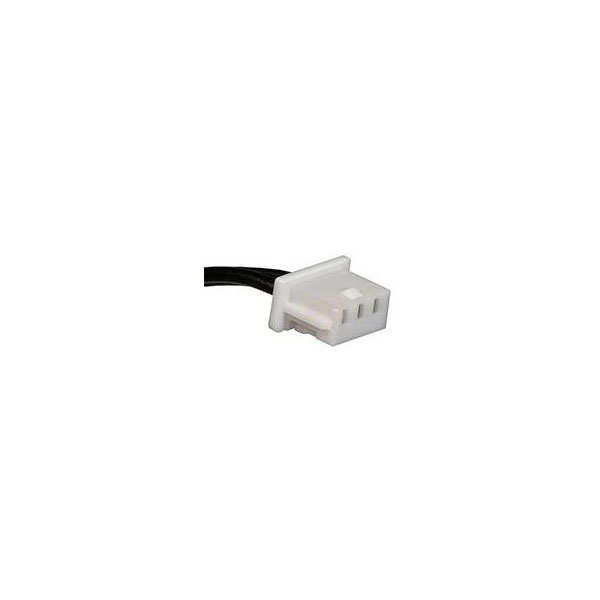

The Molex socket housing cable 151340300 is a high-quality connector with 3 pins and a contact spacing of 1.25 mm. It is commonly used in electronic applications for connecting circuits securely and efficiently. This component is particularly suited for compact spaces due to its small form factor.
Type Socket housing cable
Pitch 1.25mm
Number of Ways 3
Number of Rows 1
Application Signal, Wire-to-Board, Wire-to-Wire
Assembly configuration Dual Ended Connectors
AWG max. 28
Base unit of measure PC
Base unit of measure desc piece
Board contact surface Tin
Cable Length 50.00mm
Case Material Polyester
China ro h s status Compliant per SJ/T 11365-2006
Circuits loaded 3
Circuits maximum 3
Coating thickness (PCB side) 0.914µm
Color resin Natural
Colour Ecru
Connector coating thickness 0.889µm
Connector contact surface Tin
Connector to connector PicoBlade-to-PicoBlade
Connector Type Socket
Contact Material Phosphor bronze
CS 1.25mm
Current maximum per contact 1.0A
Delivery unit 2500
Design registration eligibility true
Elv status Not Relevant
Engineering Series Name Picoblade OTS Discre
Engineering Series No 15134
First published date 2019-10-24
G a d s l/ i m d s Not Relevant
Gender Female-Female
H f l h status Not Low-Halogen per IEC 61249-2-21
Lock to mating part Yes
Material metal Phosphor Bronze
Material plating mating Tin
Material plating termination Tin
Material resin Polyester
Material type Finished Goods
Minimum line quantity 2500
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 0.500/g
Nominal Current 1A
Nominal current - rounded value 1A
Nominal Voltage 125V
Over molded No
Packaging Type Bag
Plating min mating 0.889µm
Plating min termination 0.914µm
Primary pack qty 125
Product name PicoBlade
Product number display 151340300
Product number hyphen 15134-0300
Product number sap 0151340300
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 15134
Ro h s status Compliant per EU 2015/863
Sampleable False
Singleended No
Taxonomy Power and Signal Cable Assemblies
Termination interface style Crimp or Compression
Upc 889056870771
Voltage maximum 125V
Wire cable type UL 1061
Wire size awg 28
