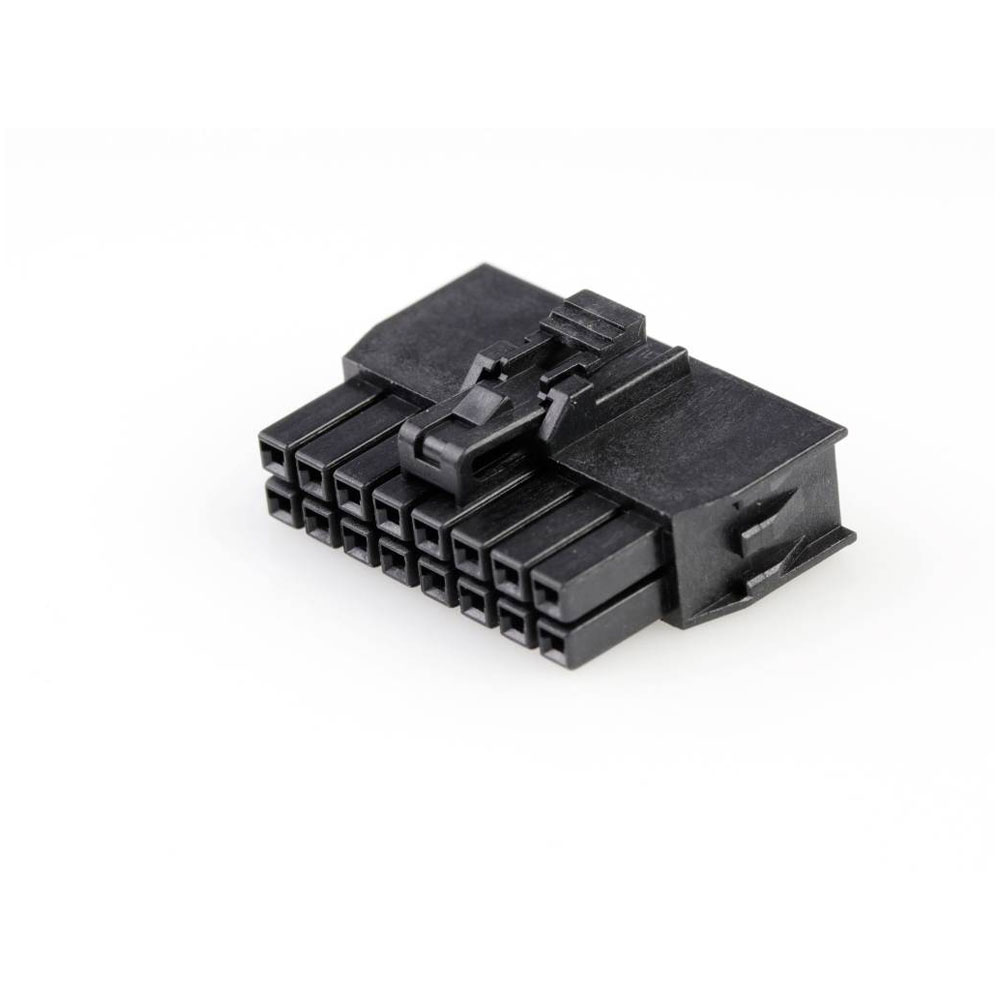

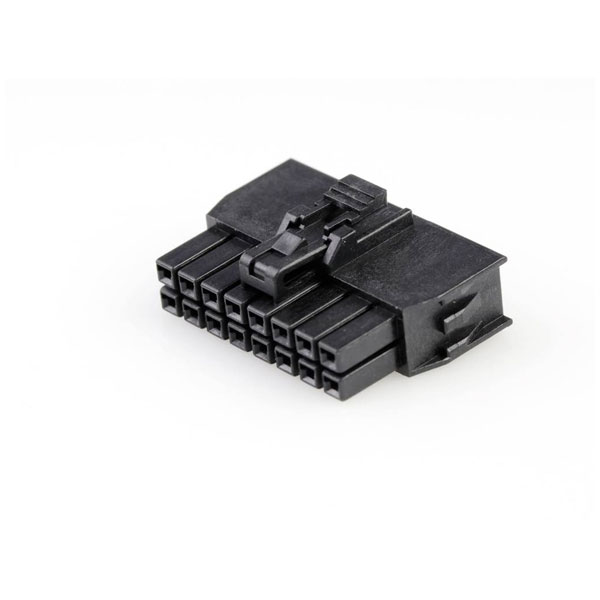

The Molex socket housing cable, with part number 1053081216, is manufactured by Molex and features a total of 16 pins with a contact spacing of 2.5 mm. This robust component is typically used in wiring applications where secure and reliable connections are paramount. Its practical design makes it suitable for a variety of electronics and electrical equipment, ensuring efficient power or signal transmission.
| Type |
Socket housing cable |
| Pitch |
2.50mm |
| Number of Ways |
16 |
| Number of Rows |
2 |
| Application |
Power, Wire-to-Board, Wire-to-Wire |
| Base unit of measure |
PC |
| Base unit of measure desc |
piece |
| Case Material |
Nylon (NL) |
| China ro h s status |
Compliant per SJ/T 11365-2006 |
| Circuits maximum |
16 |
| Color resin |
Black |
| Colour |
Black |
| Connector Type |
Socket |
| CS |
2.5mm |
| Csa |
LR19980 |
| Delivery unit |
3600 |
| Design registration eligibility |
true |
| ELV status |
Compliant per 2000/53/EC |
| Engineering number |
105308-1216 |
| Engineering Part No |
105308-1216 |
| Engineering Series Name |
Receptacle |
| Engineering Series No |
105308 |
| First published date |
2016-05-31 |
| G a d s l/ i m d s |
Compliant with Exemption 44; 34; 33 |
| Gender |
Receptacle |
| Glow wire capable |
Yes |
| H f l h status |
Low-Halogen per IEC 61249-2-21 |
| Keying to mating part |
Yes |
| Lock to mating part |
Yes |
| Material resin |
Nylon |
| Material type |
Finished Goods |
| Max. temperature |
+115°C |
| Min. temperature |
-40°C |
| Minimum line quantity |
3600 |
| Misc Attribute |
Molex MOL Power & Signal Sol. |
| Net weight |
1.325/g |
| Nominal Current |
6.5A |
| Nominal current - rounded value |
6.5A |
| Packaging Type |
Bag |
| Panel mount |
No |
| Pitch termination interface |
2.50mm |
| Polarized to mating part |
Yes |
| Primary pack qty |
450 |
| Product name |
Nano-Fit |
| Product number display |
1053081216 |
| Product number hyphen |
105308-1216 |
| Product number sap |
1053081216 |
| Reach status |
Not Contained per D(2025)7771-DC (04 Feb 2026) |
| Reference series |
105308 |
| Ro h s status |
Compliant per EU 2015/863 |
| Sampleable |
True |
| Taxonomy |
Connector Housings |
| Temperature range operating |
-40° to +125°C |
| Ul |
E29179 |
| Upc |
889056023771 |
