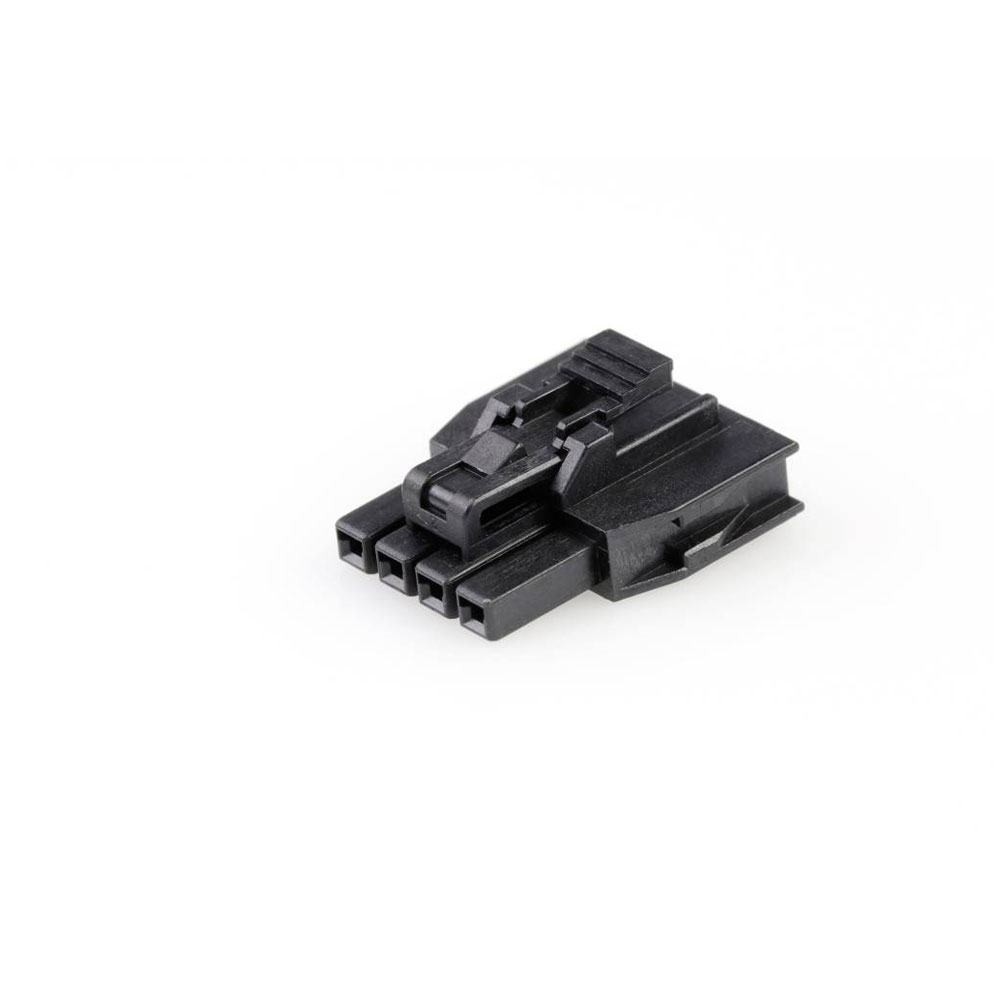

Molex 1053071204 Nano-fit Receptacle Housing 4 Pin 2.5mm Pitch

The Molex Socket housing cable 1053071204 features a total of 4 pins with a contact spacing of 2.5 mm. This cable housing is typically used for secure and reliable electrical connections in various electronic devices and equipment. Ideal for applications requiring compact connections, it is a versatile component suited for consumer electronics and industrial equipment.

Type	Socket housing cable
Pitch	2.5mm
Number of Ways	4
Number of Rows	1
Mounting Type	Cable mount
Mounting Direction	Straight
Application	Power, Wire-to-Board, Wire-to-Wire
Base unit of measure	PC
Base unit of measure desc	piece
Case Material	Nylon (NL)
China ro h s status	Compliant per SJ/T 11365-2006
Circuits maximum	4
Color resin	Black
Colour	Black
Connector Type	Socket
CS	2.5mm
Csa	LR19980
Delivery unit	7600
Design registration eligibility	true
ELV status	Not Relevant
Engineering number	105307-1204
Engineering Part No	105307-1204
Engineering Series Name	Recep single row
Engineering Series No	105307
First published date	2016-05-31
G a d s l/ i m d s	Not Relevant
Gender	Receptacle
Glow wire capable	Yes
H f l h status	Low-Halogen per IEC 61249-2-21
Keying to mating part	Yes
Lock to mating part	Yes
Material resin	Nylon
Material type	Finished Goods
Max. temperature	+115°C
Min. temperature	-40°C
Minimum line quantity	15200
Misc Attribute	Molex MOL Power & Signal Sol.
Net weight	0.490/g
Nominal Current	6.5A
Nominal current - rounded value	6.5A
Packaging Type	Bag
Panel mount	No
Pitch termination interface	2.50mm
Polarized to mating part	Yes
Primary pack qty	950
Product name	Nano-Fit
Product number display	1053071204
Product number hyphen	105307-1204
Product number sap	1053071204
Reach status	Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series	105307
Ro h s status	Compliant per EU 2015/863
Sampleable	True
Taxonomy	Connector Housings
Temperature range operating	-40° to +125°C
Ul	E29179
Upc	889056026451
