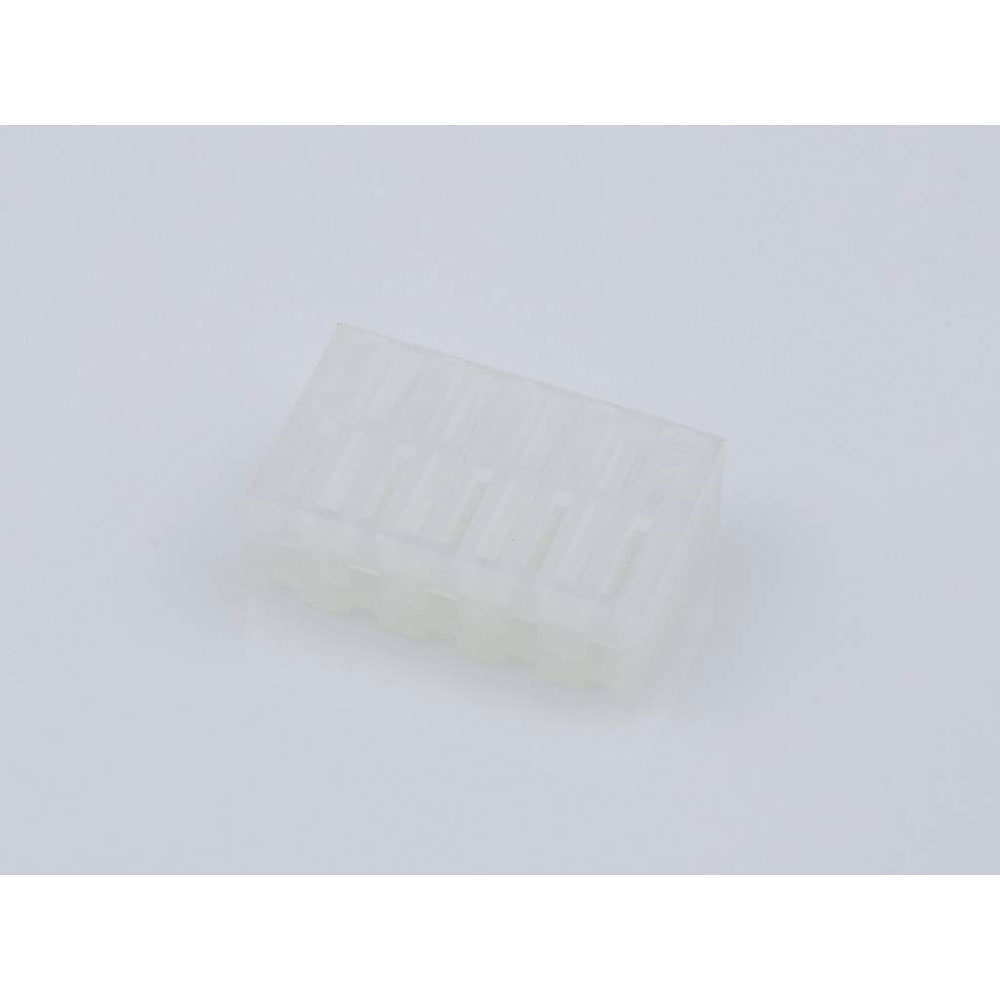

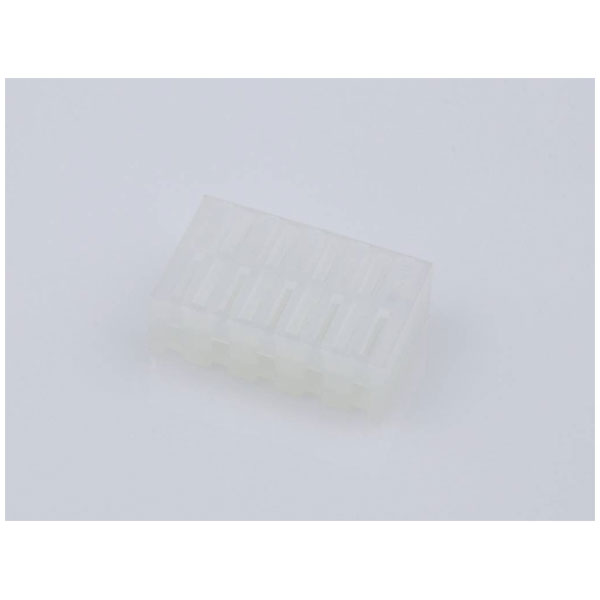

Molex 10011054 KK Crimp Housing 5-pin 5.08mm Pitch Natural

Molex
Order Code:

05-2782

Brand: Molex MPN: 10011054 EAN-13: 2050007094258
Qty Unit Price (Ex VAT)
50+ £0.153
100+ £0.120
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
338 in stock, despatched in 4 working days

The Molex pin housing cable, model number 10011054, features a total of 5 pins with a contact spacing of 5.08 mm. Manufactured by Molex, this connector is typically used in electronic and electrical applications for secure wire-to-board connections. It is supplied in a convenient 1 piece per bag format.
Type Pin housing cable
Pitch 5.08mm
Number of Ways 5
Number of Rows 1
Application Power, Wire-to-Board
Base unit of measure PC
Base unit of measure desc piece
Case Material Nylon (NL)
China ro h s status Compliant per SJ/T 11365-2006
Circuits maximum 5
Color resin Natural
Colour Ecru
Connector Type Socket
CS 5.08mm
Csa LR19980
Delivery unit 3500
Design registration eligibility false
Elv status Compliant per 2000/53/EC
Engineering number 3001-05
Engineering Part No 3001-05
Engineering Series Name .200 CRIMP HSG.
Engineering Series No 03001
First published date 2007-05-16
Flammability 94V-2
G a d s l/ i m d s Not Relevant
Gender Receptacle
Glow wire capable No
H f l h status Low-Halogen per IEC 61249-2-21
Lead free process capability WAVE
Material resin Nylon
Material type Finished Goods
Minimum line quantity 17500
Misc Attribute Molex MOL Power & Signal Sol.
Net weight 1.500/g
Packaging Type Bag
Panel mount No
Primary pack qty 3500
Product name KK 508
Product number display 10011054
Product number hyphen 10-01-1054
Product number sap 0010011054
Reach status Not Contained per D(2025)7771-DC (04 Feb 2026)
Reference series 3001
Ro h s status Compliant per EU 2015/863
Sampleable True
Taxonomy Connector Housings
Temperature range operating See Product Specification
Ul E29179
Upc 800753745544
