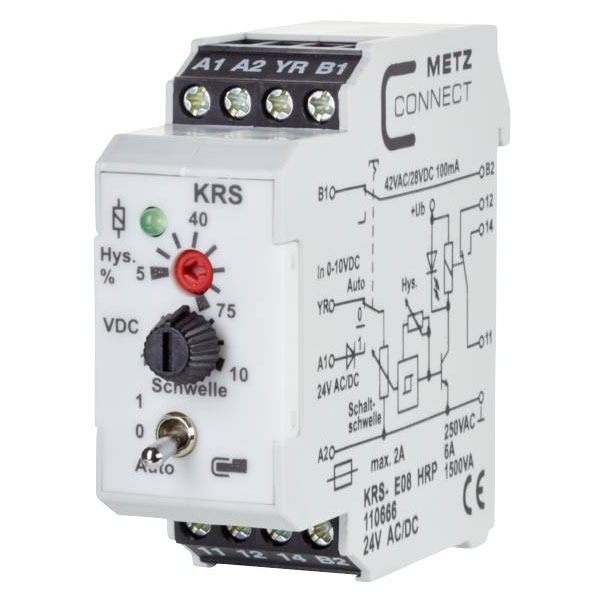

Metz Connect 110666 Threshold Switch 24 V AC/V DC 1 Change-Over Relay

The Metz Connect 110666 is a threshold switch designed to operate with 24 V AC or DC. It features one change-over contact suitable for various monitoring relay applications. Metz Connect 110666 is typically used for reliable monitoring and control in electrical systems.

Type	Threshold switch
Colour	Grey
Connection	Screw terminal
Contact Type	1 change-over
Depth	60mm
Dim	(W x H x D) 22.50 x 61.30 x 60 mm
Height	61.30mm
IP Rating	IP40
Max. temperature	+50°C
Min. temperature	-10°C
Operating Voltage	24, 24 V AC, V DC (max)
Weight	70g
Width	22.50mm
