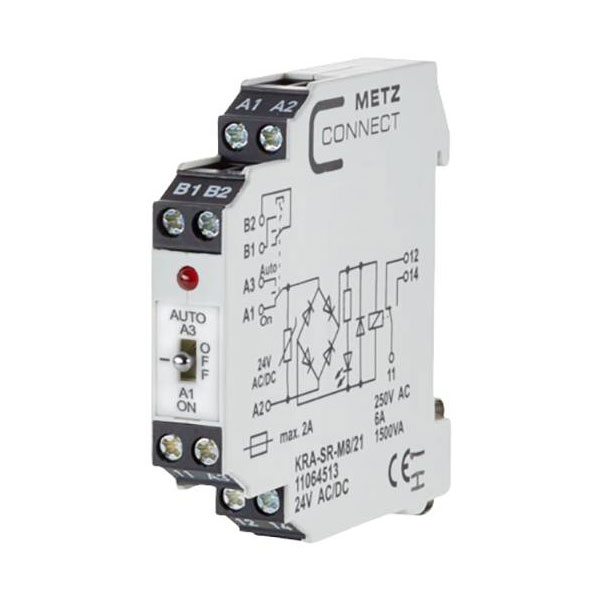

Metz Connect 11064513 Coupler Module 24V AC/DC 1 Change-Over Screw Terminals

Metz Connect 11064513 is a coupler module designed to operate with 24 V AC and varyingly with DC up to 1 change-over. It is widely used in monitoring relay systems and electrical circuits to ensure stable connections and signal transfers. This robust component is ideal for industrial automation and electrical control applications.

Type	Coupler module
Colour	Grey
Connection	Screw terminal
Contact Type	1 change-over
Depth	60mm
Dim	(W x H x D) 11.20 x 61.30 x 60 mm
Height	61.30mm
IP Rating	IP40
Maximum Temperature	+55°C
Min. temperature	-20°C
Operating Voltage	24, 24 V AC, V DC (max)
Weight	45g
Width	11.20mm
