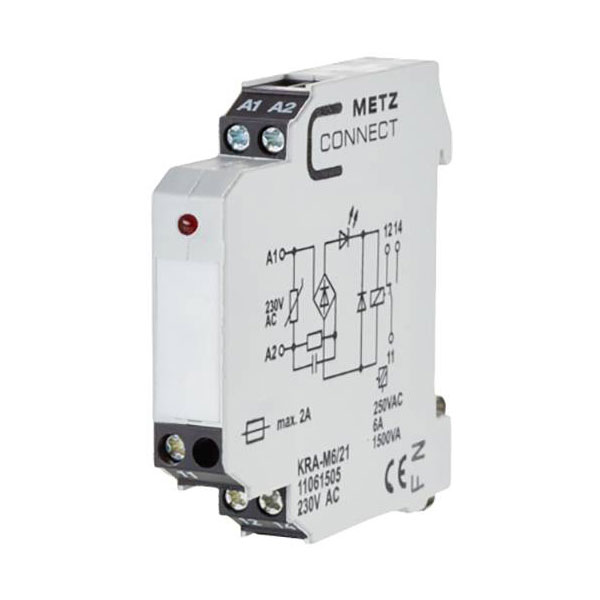

Metz Connect 11061505 Coupler Module 230V AC Change-over Screw Terminals

The Metz Connect 11061505 is a coupler module designed to operate with 230 V AC. It features one change-over contact for efficient signal switching or control. This monitoring relay is ideal for automation and control applications.

Type	Coupler module
Colour	Grey
Connection	Screw terminal
Contact Type	1 change-over
Depth	60mm
Dim	(W x H x D) 11.20 x 61.30 x 60 mm
Height	61.30mm
IP Rating	IP40
Max. operating voltage	230V AC
Maximum Temperature	+55°C
Min. temperature	-20°C
Weight	45g
Width	11.20mm
