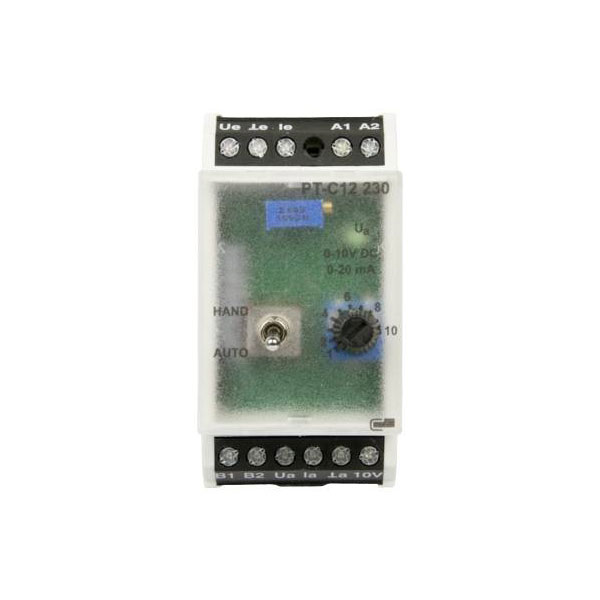

Metz Connect 110502 PT-C12 Signal Converter 230V AC Isolates Signals

Metz Connect's PT-C12 230 V AC 110502 is a signal converter designed for seamless integration into control systems and automation processes. This versatile analogue converter and passive isolator ensures accurate signal transmission and reliability. It is ideal for applications involving temperature transducers and interface converters to maintain efficient system operations.

Type	Signal converter
Cross section (inflexible) (max.)	2.5mm²
Cross section (inflexible) (min.)	0.34mm²
Current Consumption	AC: 200 mA; DC: 110mA
Dim	(L x W x H) 60 x 35 x 69.30 mm
Height	69.30mm
Input signal (current)	0 - 20mA
Input signal (current) (max.)	20mA
Input signal (voltage)	0 - 10 V/DC
Input signal (voltage) (max.)	10V
Length	60mm
Load	500 Ω
Max. ambient temperature	+70°C
Min. ambient temperature	-20°C
Misc Attribute	PT-C12 230 V AC
Output (current)	0 - 20mA
Supply Voltage	0 - 10V
Width	35mm
