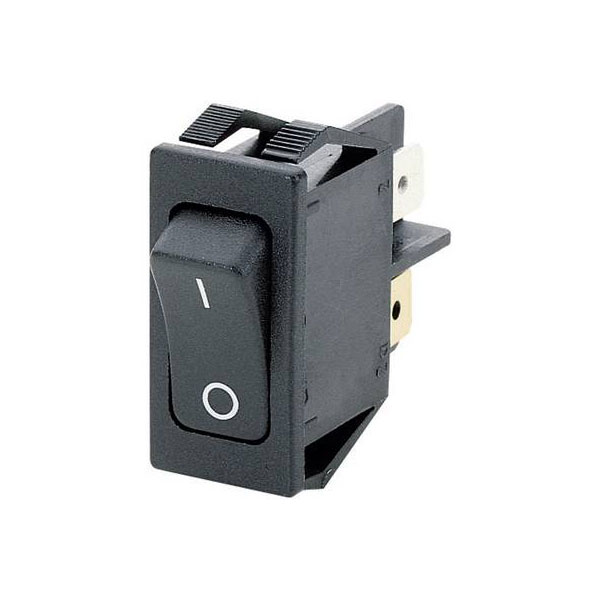

A Marquardt rocker switch suitable for high inrush.
- DPST On-Off
- Actuating force: 5N
- Approvals: ENEC UL CSA
- Casing/button colour: Black
- Connection: Solder tag
- Contact material: Silver
- Contact resistance: 100mΩ
- L x W x H 30 x 15 x 36.3mm
- Durability: ≥ 50000 cycles
- Electrical lifespan: ≥ 50000 cycles (electric)
- Front panel cut-out: 27.2 x 12.2mm
- Functions: latch
- Insulation resistance: >100 MΩ
- Lighting type: none
- Print motif: 0/I
- Protection type: IP40
- Switch position: 2 x Off/On
- Switch type: Toggle switch
- Switching current (max.): 16A
- Switching voltage: 250V AC
| Type |
Rocker switch |
| Contact Configuration |
DPST |
| Max. Current |
16A |
| Action |
On / off |
| Illumination Type |
None |
| Illumination Colour(s) |
N/A |
