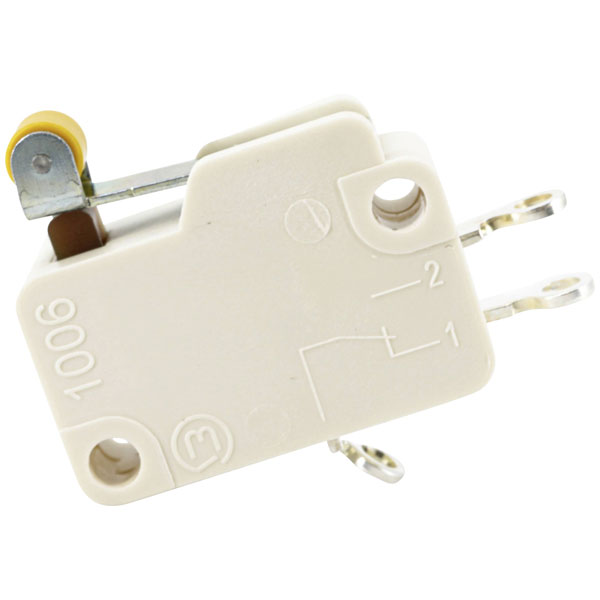

Marquardt 1006.0704 Snap-action switch 250 V AC 10 A 28x10.3x20.8mm

Marquardt 1006.0704 is a snap-action switch designed to operate under a voltage of 250 V AC and a current of up to 10 A. This product features a compact design with dimensions of 28 mm in length, 10.3 mm in width, and 20.8 mm in height, which facilitates integration into a variety of electrical systems where space is limited. As a push-button switch, it is utilised in applications requiring precise actuation, such as in household appliances, automotive controls, and industrial machinery. The robust construction of this switch ensures reliable performance and durability in demanding environments. Its design adheres to strict industry standards, providing engineers with a dependable solution for safety and operational control tasks.

Type	1006.0704
Current Rating	10A
Voltage Rating	250v
Illumination	Non-Illuminated
Actuating Force	3.8N
Contact Material	Silver
Contact Resistance	100mΩ
Content	1
Dielectric Strength	1500V
Dimensions	(L x W x H) 28 x 10.3 x 20.8 mm
Durability	5E6
Height	20.8mm
Insulation Resistance	100MΩ
Length	28mm
Lighting Type	None
Max. temperature	100°C
Maximum Temperature	100°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Product Type	Snap-action switch
Switching current (max.)	10A
Switching Voltage	250V AC
Width	10.3mm
