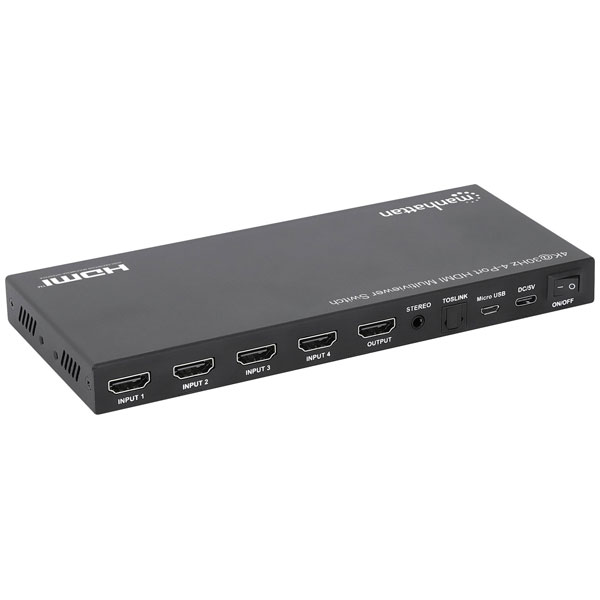

Manhattan 208406 is that functions as an HDMI switch, housed within a robust steel casing and designed for rack-mount installation. This versatile device supports Ultra HD video signals, enabling seamless multi-view capabilities that make it ideal for professional audio-visual setups and broadcasting environments. The switch facilitates efficient management of multiple HDMI sources, and the included remote control allows for effortless operation. It is perfectly suited for applications in control rooms, network operations centres, and other technical environments where high-definition video management is essential. This product underscores reliability and precision, catering to the demanding needs of modern digital signal processing.
| Type |
HDMI switch |
| Connector |
Yes |
| Colour |
Black |
| 3D |
Yes |
| AC adapter included |
Yes |
| Audio output channels |
7.1 channels |
| Bandwidth |
340 MHz |
| Batteries included |
Yes |
| Cable Length |
1 m |
| Cables included |
USB Type-A to Micro USB Type-B, USB Type-A to USB Type-C |
| Compliance certificates |
CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| DC-in jack |
Yes |
| Depth |
212mm |
| Digital audio optical out |
1 |
| External power adapter |
Yes |
| HDCP |
Yes |
| HDCP version |
1.4 |
| Height |
55mm |
| InterFaces (Input) |
HDMI™ |
| Manual |
Yes |
| Master (outer) case height |
212mm |
| Master (outer) case length |
620mm |
| Master (outer) case net weight |
14.8 kg |
| Master (outer) case width |
456mm |
| Material |
Metal |
| Maximum resolution |
3840 x 2160 pixels |
| Mounting brackets included |
Yes |
| No. of Inputs |
4 |
| No. of outputs |
1 |
| Number of HDMI outputs |
1 |
| Operating relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 70 °C |
| Package weight |
671 g |
| Power consumption (typical) |
5 W |
| Power Supply Type |
via USB |
| Products per master (outer) case |
20 pc(s) |
| Remote control included |
Yes |
| Resolution (max.) |
3840 x 2160 p |
| Storage temperature (T-T) |
-20 - 80 °C |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported monitors |
1 |
| Supported video modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1600p, 2160p |
| USB port type |
Micro USB Type-B |
| Video port type |
HDMI |
| Weight |
372g |
| Width |
196mm |
