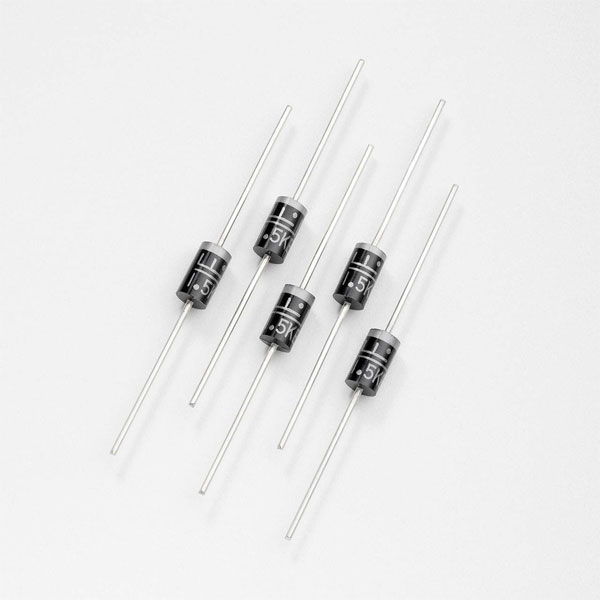

Littelfuse 1.5KE15CA TVS diode DO 201 15.8V 1500W Suppression Diode

Littelfuse's 1.5KE15CA is a robust Transient Voltage Suppression (TVS) diode designed for effective overvoltage protection in sensitive electronic applications. Featuring a breakdown voltage of 15.8V and a peak pulse power capability of 1500W, this semiconductor diode utilises a PN junction to effectively clamp voltage spikes, safeguarding components from transients induced by inductive load switching or lightning strikes. This DO-201 package suppressor diode is suitable for use in a wide range of engineering applications, including telecommunication systems, power supplies, and automotive electronics, where reliable protection against voltage transients is crucial. Designed with bidirectional polarity for blocking and clamping capabilities, it contributes significantly to system stability and longevity.

Type	1.5KE
Package Type	DO-201
Breakdown Voltage U(BR)	15.8V
Maximum Operating Temperature	175°C
Peak Current I(pp)	71.7A
Polarity	Bipolar
Power (max) P(TOT)	1500W
Product Type	TVS diode
Reverse Voltage U(R)	12.8V
Terminal Voltage U(CL)	21.2V
