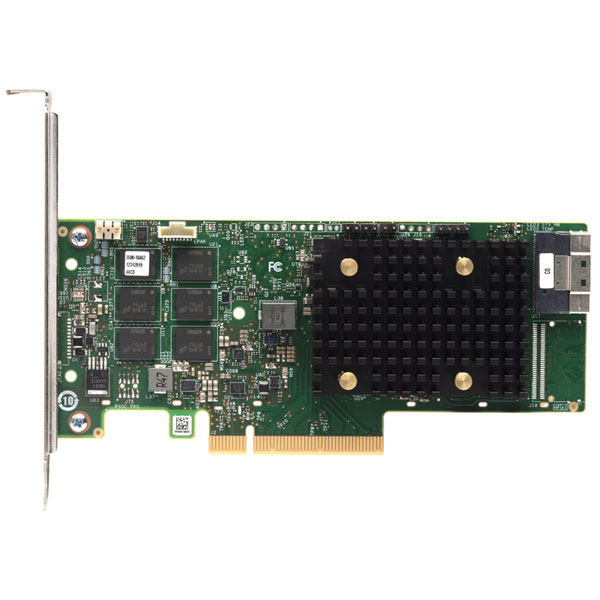

Lenovo 4Y37A09728 Lenovo 4Y37A09728 RAID controller PCI Express x8 4.0 12 Gbit/s

The RAID 94 Series adapters all have a PCIe 4. host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 93 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).

RAID on Chip-based controllers such as the RAID 94 adapters have a dedicated processor that offloads all RAID functions from the server's CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 94-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.

• PCIe 4. x8 host interface, also compatible with a PCIe 3. host interface
• 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 956 adapter family
• 4GB or 8GB of integrated flash-backed cache
• RAID 94-8i supports up to eight internal SAS or SATA drives
