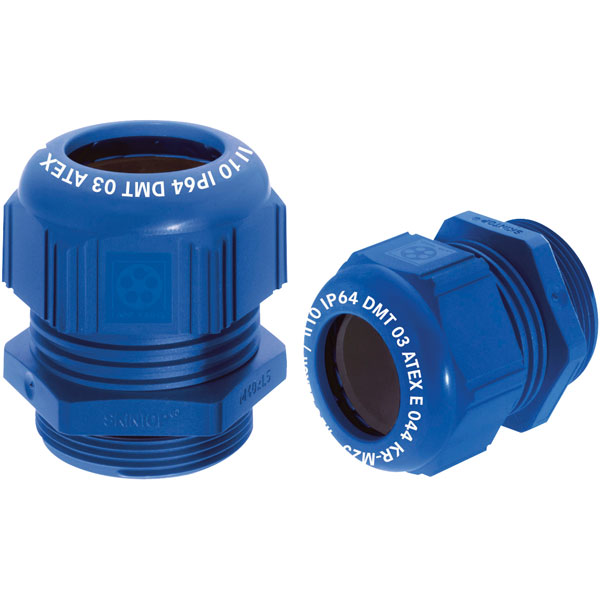

LappKabel 54115410 K-M EEXE II ATEX EX Screwed Cable Gland Blue M16 7-9mm

This LappKabel SKINTOP® K-M ATEX Plus Screwed Cable Gland has been developed for use in areas with risk of explosion, and cables used with fail safe circuits in housings and devices that require Class 'e' security. The cable gland is recommended for use in the chemical and petrochemical industry, mobile offshore marine applications and apparatus of enhanced safety protection.

• Metric PA6 plastic cable gland in accordance with EN 50014/50019
• For areas with a risk of explosion
• Protection class IP 68, blue, with ATEX approval
• Material: Body: Polyamide, seal: CR/NBR
• Protection type: IP68 (up to 10 bar)
• Standards/test marks: DMT 03 ATEX E 044X
• DIN-EN 50014
• DIN-EN 50019
• Temperature range: -40°C to +80°C
• Type: SKINDICHT® KR-M EEXE II ATEX
• Supplied in blue (RAL 5015)
• Clamping range diameter: 7-9mm
• Supplied size: M16
• Manufacturer's part: LappKabel 54115410
