LappKabel 53112530 gland EMC M12 Brass 1 pc for secure cable entry

Name: LappKabel 53112530 gland EMC M12 Brass 1 pc for secure cable entry
Brand: LappKabel
Price: 8.00 GBP
Availability: InStock

Standard range

Order Code:

67-6263

Brand: LappKabel MPN: 53112530

RoHS Compliant
Country of Origin: Germany
Free UK shipping available
View Full Product Range (66)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£8.00
75+	£7.60
250+	£7.44

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

104 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

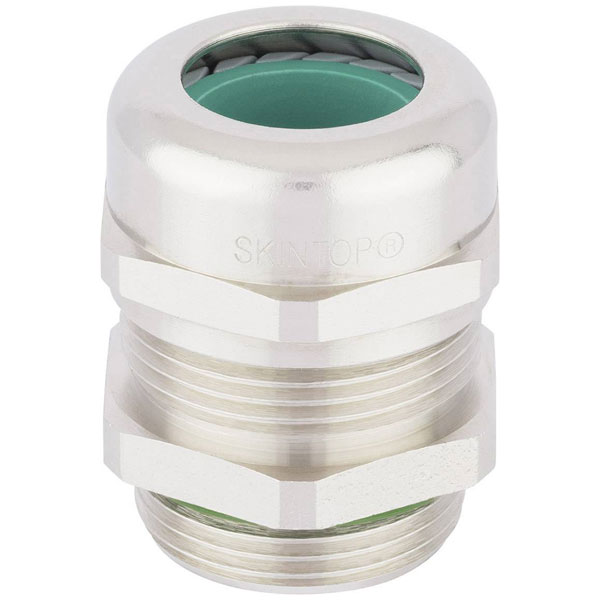

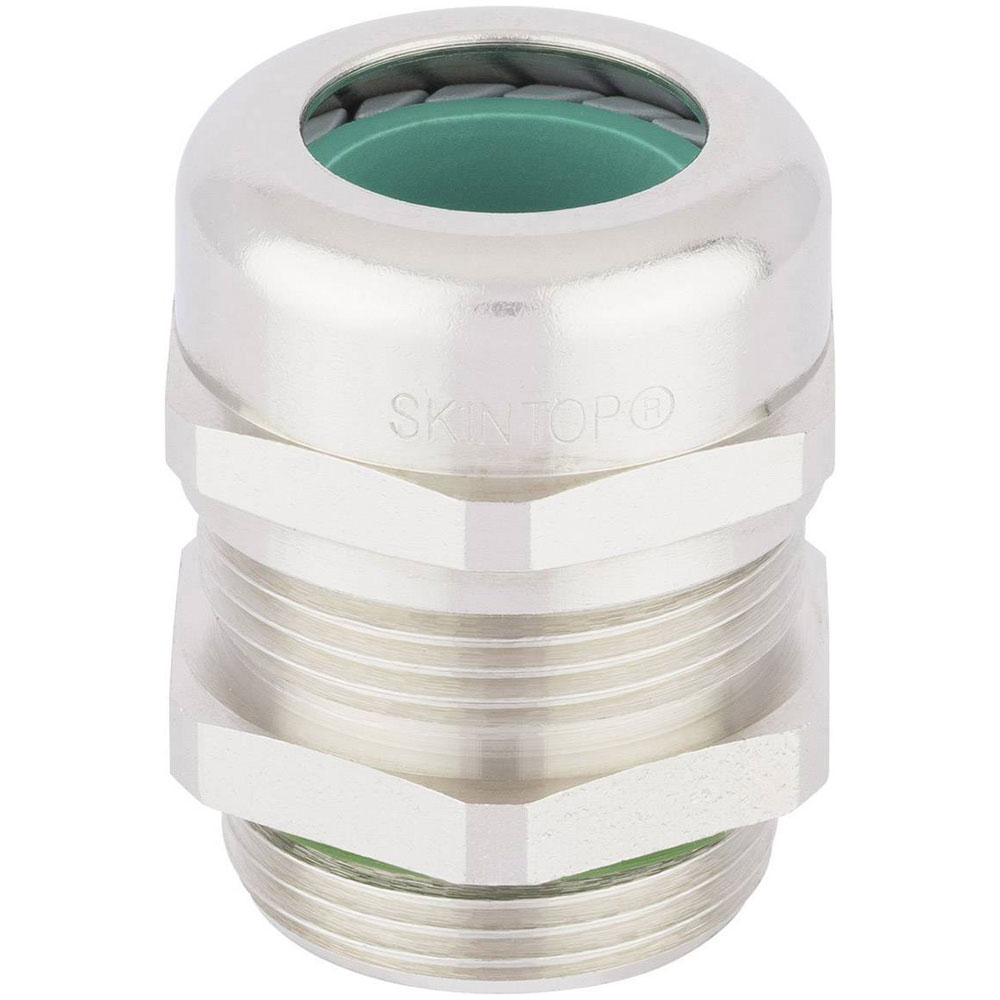

Introducing the LappKabel 53112530 Gland, designed to provide secure and reliable cable entry with excellent electromagnetic compatibility (EMC). Made from high-quality brass, this M12 gland ensures durability and effective shielding for various applications.

Type	Cable Gland
Certification marks	DIN EN 45545-2 · DIN EN 45545-3:2013-08 · DIN EN 1363-1: 2012-10 · DIN EN 13501-2: Classification E30
Clamp Ø	3.5mm
External thread	M12
Factory colour	Brass
Halogen-free	Yes
IP rating	IP68
Manufacturer part #	53112530
Material	Brass
Max. temperature	+100°C
Min. temperature	-25°C
Misc Attribute	SKINTOP® MS-HF-M SC M12
RoHS-compliant	Yes
Spanner size	16mm
Terminal Ø (max.)	7mm
Thread Length	6.5mm
