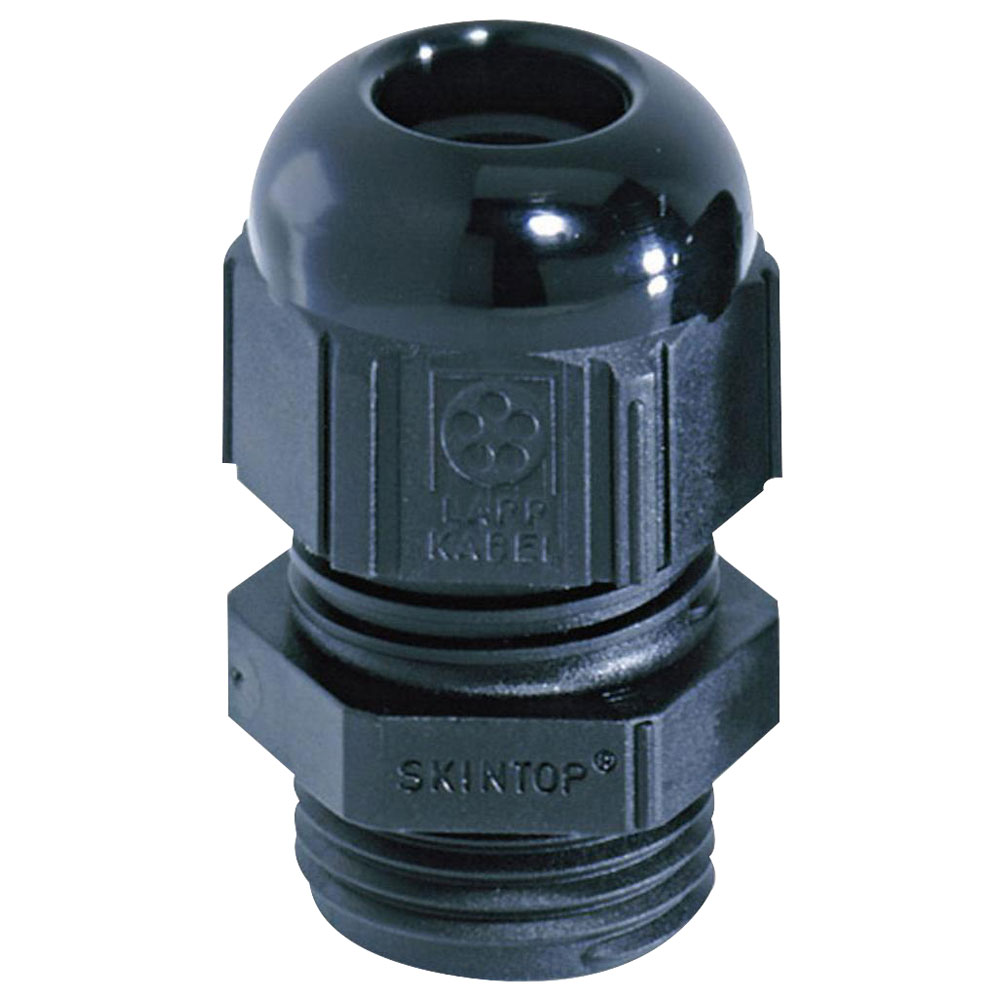

LappKabel 53010000 SKINTOP ST-M Cable Gland Oil Resistant Long Thread 3.5-7mm

The LappKabel 53010000 is a SKINTOP ST-M Cable Gland with an Extra Long Connection Thread. The cable gland has a high oil resistance for maximum reliability, permanent vibration protection, wide variable clamping ranges and optimum strain relief.

• High oil-resistance for maximum reliability
• Permanent vibration protection
• Wide, variable clamping ranges
• Optimum strain relief
• Wide clamping range
• Assembly time
• Temperature-resistant
• Variety of approval certifications
• Original: metric plastic cable gland in accordance with EN 50262 for rapid installation.
• Clamp Ø: 3.5mm
• Colour: Black (RAL 9005)
• External thread: M12
• Material (LoV): Polyamide
• Max. temperature: +100°C
• Min. temperature: -40°C
• Protection type: IP68 (up to 5 bar)
• Spanner size: 15mm
• Terminal Ø (max.): 7mm
• Thread length: 15mm
• Manufacturer's part: LappKabel 53010000
