LappKabel 1708002/250 alarm cable J-Y(ST)Y 2x2x0.8mm Red 250m for fixed use

LappKabel
Standard range
Order Code:

67-6048

Brand: LappKabel MPN: 1708002/250
Qty Unit Price (Ex VAT)
1+ £136.67
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

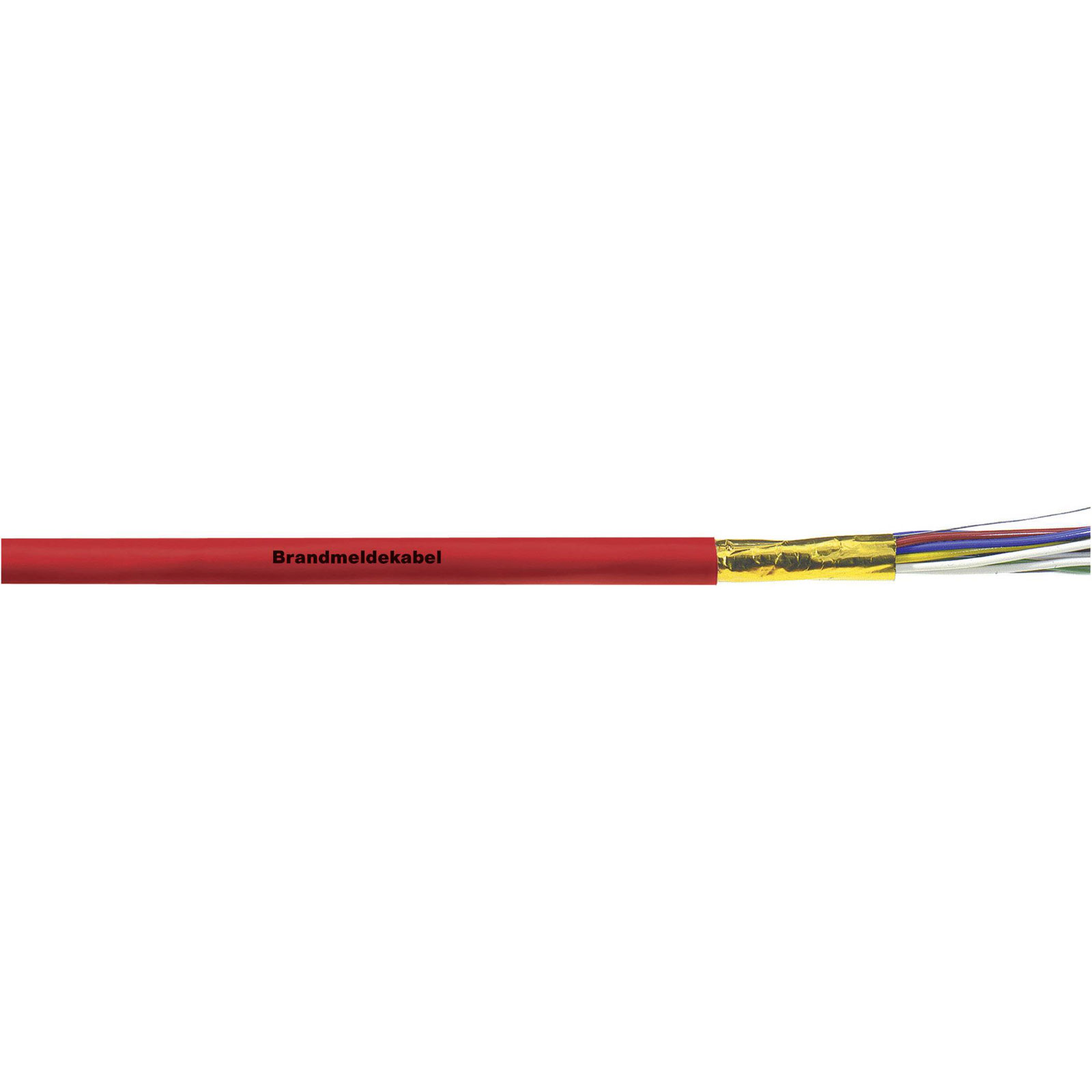

The red installation cable is used for signal transmission and is laid fixed on or under plaster in dry and damp rooms.
Type Cable
Bend radius 10 x external dia., when permanently installed
Bend radius (no. of ODs for fixed installation) 10
Cable type J-Y(ST)Y
Certification marks According to: VDE 0815
Core layout Single-wire
Cross section 2 x 2 x 0.8 mm
Cross section (each core) 0.8mm
Factory colour Red
Halogen-free No
Insulation material PVC
Manufacturer part # 1708002/250
Max. temperature range (fixed installation) +70°C
Max. temperature range (flexible installation) +50°C
Min. temperature range (fixed installation) -30°C
Min. temperature range (flexible installation) -5°C
Misc Attribute J-Y(ST)Y...LG 2X2X0,8 BMK
No. of leads 4
Outside Ø 7mm
Packaged Yes
Peak operating voltage (not for heavy current applications) 300V
Shielded Yes
Sold per metre No
Standards J-Y(ST)Y
Temperature Range Fixed laid: -40 - +70°C
Twisted pair cabling (part 1) Yes (1)
Wire ID code In accordance with VDE 0815
