LappKabel 16000523 NYM-J Grey Installation Cable 5 x 6mm²

Image Representative of Range

LappKabel 16000523 NYM-J Grey Installation Cable 5 x 6mm²

LappKabel
Standard range
Order Code:

63-6697

Brand: LappKabel MPN: 16000523 EAN-13: 2050000194153
Qty Unit Price (Ex VAT)
1+ £5.13
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
458 in stock, despatched in 4 working days

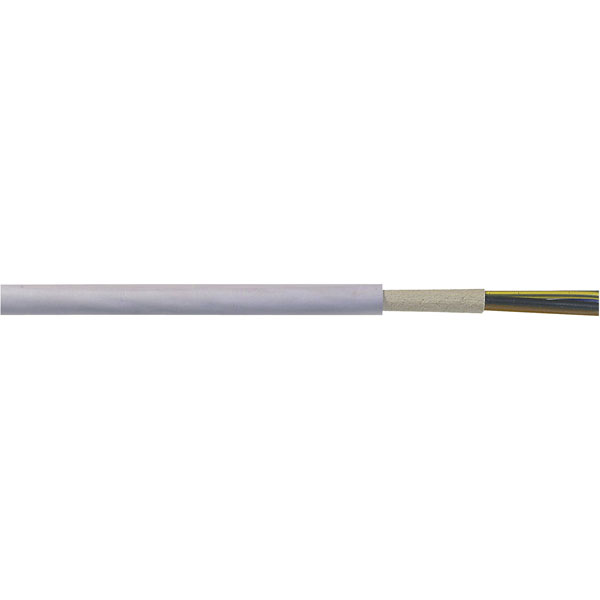

This standard cable from LappKabel is suitable for plaster, brickwork and immovable concrete and has a grey PVC-based sleeve.


  • Bend radius (no. of ODs for fixed installation): 4
  • Cable Type: NYM-J Sheathed cable
  • Colour: Grey
  • Cross section 5 x 6mm²
  • Insulation material: PVC
  • Max. temperature range (fixed installation): +70°C
  • Max. temperature range (flexible installation): +60°C
  • Min. temperature range (fixed installation): -40°C
  • Min. temperature range (flexible installation): +5°C
  • No. of leads 5
  • Nominal voltage: 500V
  • Nominal voltage U0: 300V
  • Outside diameter: 16.3mm
  • Shielded: No
  • Sold per metre: Yes
  • Standards: VDE 0250 Part 204
  • Manufacturer's part 16000523

This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
Cable Diameter 16.3mm
Colour Grey
Conductor Cross-section 5 x 6mm²
Insulation material PVC
No. of Cores 5
Sold by Metre Yes
