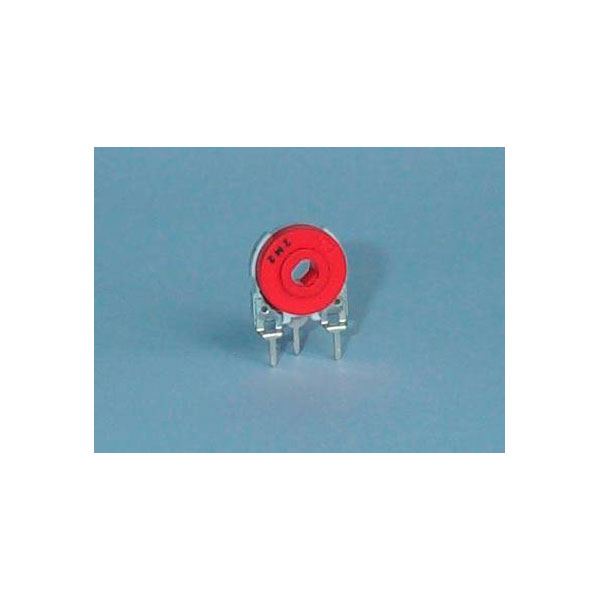

KYOCERA/AVX 2041452105 Cermet trimmer linear 1W 100kΩ 240° 270° 1 pc

KYOCERA/AVX 2041452105 is a precision-engineered cermet trimmer with a linear taper resistance of 100kO, capable of handling up to 1W of power. This component is designed to offer high reliability and stability, featuring an adjustment range of 240° to 270°, which provides enhanced flexibility for fine-tuning circuits. Suitable for use in a variety of electronic applications, this trimmer is an ideal choice for precise resistance adjustments in analogue circuits, instrumentation, and calibration tasks. Commonly utilised in environments where precise resistance control is paramount, the 2041452105 ensures optimal performance in both prototyping and final production stages.

Resistance	100kΩ
Power Rating	1W
Connection	Pins
Content	1
Cross Section	5mm
Cut-off Voltage	300V
Dimensions	(L x W x H) 7 x 15 x 12.5 mm
Electrical Angle	240°
Height	12.5mm
Length	7mm
Maximum Temperature	+90°C
Mechanical Angle	270°
Minimum Temperature	-40°C
Operation type	side
Outside Diameter	15mm
Product Type	Cermet trimmer
Resistance characteristic	linear
Tolerance ±	0.2%
Width	15mm
