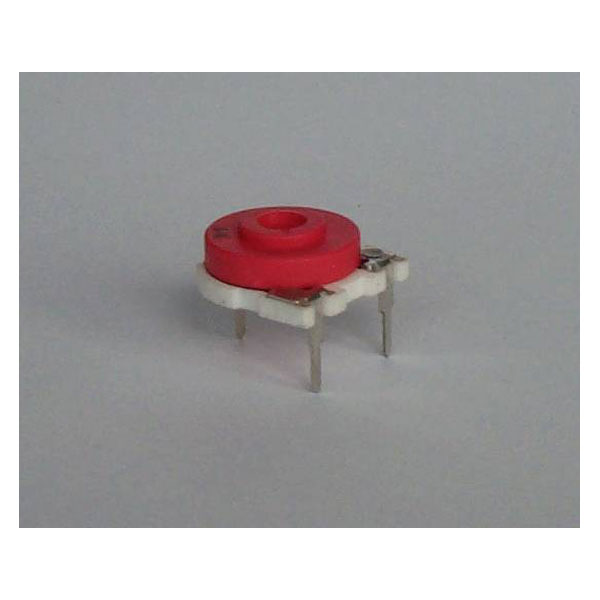

KYOCERA/AVX 2041441505 Cermet trimmer linear 1W 10kΩ 240° 270° 1pc

KYOCERA/AVX 2041441505 is a cermet trimmer resistor characterized by a power rating of 1 watt and a resistance value of 10 kilo-ohms. This component allows for linear resistance adjustments within a range of 240 to 270 degrees, making it suitable for precision tuning in electronic circuits. Typically employed in applications such as impedance matching, calibration, and signal conditioning, this trimmer is noted for its reliability and accuracy in fine-tuning electrical parameters. The KYOCERA/AVX 2041441505 offers durable performance for industrial and commercial electronics, where precise resistance control is required. Additionally, its robust construction ensures consistent operation under various environmental conditions.

Resistance	10kΩ
Power Rating	1W
Connection	Pins
Content	1
Cross Section	10mm
Cut-off Voltage	300V
Dimensions	(L x W x H) 15 x 15 x 8 mm
Electrical Angle	240°
Height	8mm
Length	15mm
Maximum Temperature	+90°C
Mechanical Angle	270°
Minimum Temperature	-40°C
Operation type	top
Outside Diameter	15mm
Product Type	Cermet trimmer
Resistance characteristic	linear
Tolerance ±	0.2%
Width	15mm
