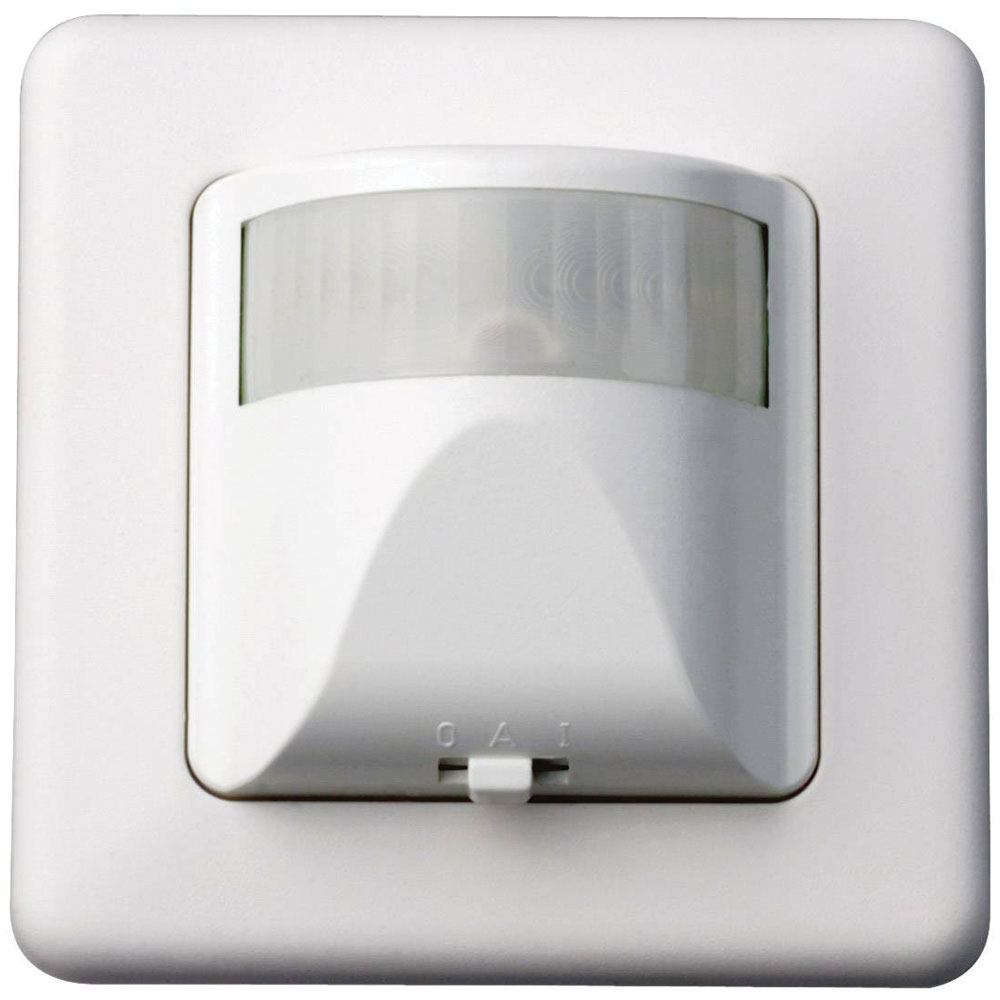

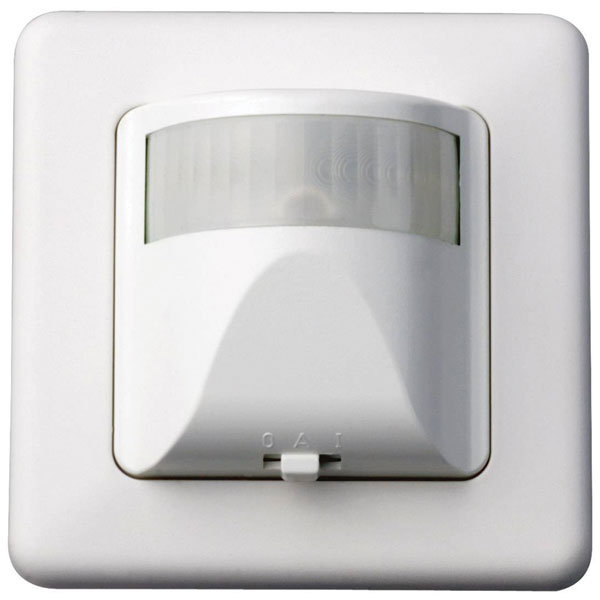

Kopp 808401012 Flush PIR Motion Detector 180° Creamy White IP20

The Kopp 808401012 is a flush mount PIR motion detector with a 180° detection range, featuring a relay function. Its creamy white finish and IP20 rating make it ideal for indoor applications. This motion detector is suitable for enhancing security systems and automation in residential or commercial spaces.

Type	PIR motion detector
Animal zone	false
Anti-bacterial treatment	false
Bridging switch	true
Built-in depth	31.0mm
Built-in diameter	50mm
Built-in length	32mm
Built-in Width	50.0mm
Colour	White
Compatible with Amazon Alexa	false
Compatible with Apple HomeKit	false
Compatible with Google Assistant	false
Connection Type	Screwed terminal
Constant light control	false
Contact Type	Relay
Control current	0.00mA
Creep-under protection	false
Degree of protection (IP)	IP20
Depth	61.4mm
Detection Angle	180°
Detection angle horizontal	0 - 180°
Diameter reach on floor	20m
Dim function with dimmer basic element	false
Factory colour	Creamy white
Forced switch off	true
Forced switch on	true
Frequency	N/A
Halogen free	true
HVAC-control	false
IFTTT support available	false
Impact strength	IK00
IP Rating	IP20
Material	Plastic
Material quality	Thermoplastic
Max. duty cycle	4min
Max. presence range	0m²
Max. Range	10m
Max. reach frontally	10.000m
Max. reach sideways	10.000m
Max. starting current	16.00A
Max. switching power	1000W
Max. switching power LED	300W
Min. depth of built-in installation box	32.0mm
Min. starting current	0.17A
Min. switch-on time	4s
Model	Movement sensor
Mounting method	Flush-mounted
Mounting Type	Flush mount
Networkable	false
Nominal Voltage	230 - 230V
Number of switching zones	1
Operating Temperature	0 - 50°C
Optimum mounting height	1.1m
Pivoting range sensor, horizontal	0 - 0°
Pivoting range sensor, vertical	0 - 0°
Remote operation	false
Response value luminosity	5 - 1000lx
Response value luminosity adjustable	true
Response value sensitivity adjustable	true
Sensor Type	Passive infrared
Similar RAL	9001
Staircase light controller	false
Standby current consumption	1W
Substation input	true
Suitable for ceiling mounting	false
Suitable for C-load	true
Suitable for wall mounting	true
Suitable for wireless transmission	false
Surface finishing	Matt
Surface protection	Untreated
Switch contact	Relays
Switching Capacity	1000W
Switching capacity (energy saving bulbs)	4 - 1000W
Switching capacity (halogen bulbs)	4 - 1000W
Switching capacity (light bulbs)	4 - 1000W
Switching capacity (light tubes)	4 - 1000W
Switching-on delay	0s
Switch-off delay	0s
Teach-function for response value luminosity	false
Temperature	0 - 40°C
Time settings	4 -240s
Transparent	false
Twilight settings	*
Used at	Indoors
Voltage type	AC
With acoustic sensor	false
With alarm function	false
With connection cable	false
With DALI interface	false
With remote control	false
With signal unit	false
