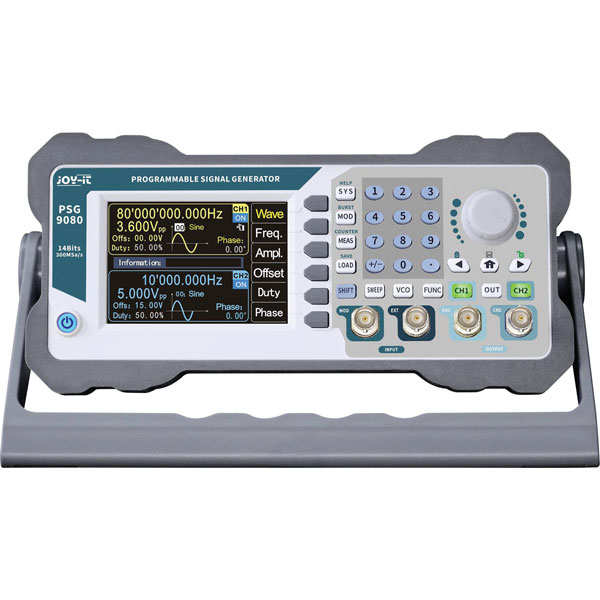

Joy-it JT-PSG9080 Signal Generator with 3 channel and various waveforms

The programmable signal generator PSG9080 can be used for many different waveforms, such as Create sine, square, triangle, pulse, and custom waves. The signal generator has a generous frequency range ranging from 1nHz to 80MHz and a sampling rate of 300 MSA/s.. The housing is designed to be of high quality and offers non-slip feet for a pleasant working. Different signal modulation methods, such as Frequency modulation, phase modulation, amplitude modulation, pulse width modulation, frequency scanning, Are no longer a challenge with this device. The integrated measuring function also enables the frequency, period and duty cycle of external signals to be measured and displayed in real time on the screen. The signal generator can be operated very easily with its intuitive key layout and the high resolution 3.5-inch color LCD. Different settings can be saved in groups and can therefore be called up again very quickly. The menu can also be displayed in German, English and French.

Type	Generator
Frequency Range	1 nHz - 80 MHz
Number of Channels	2-channel
Calibrated to	Manufacturer's standards (no certificate)
Dim	(W x H) 219 mm x 160 mm
Display	LCD
Frequency range (sine)	80MHz
Frequency range square wave	30MHz
Frequency range triangle	50MHz
Height	160mm
Interfaces	BNC
Max. frequency	80MHz
Min. frequency	1 nHz
Signal output type	Sine, square, triangle, pulse, user-defined, Lorentz
Voltage Supply	230 V/AC
Width	219mm
