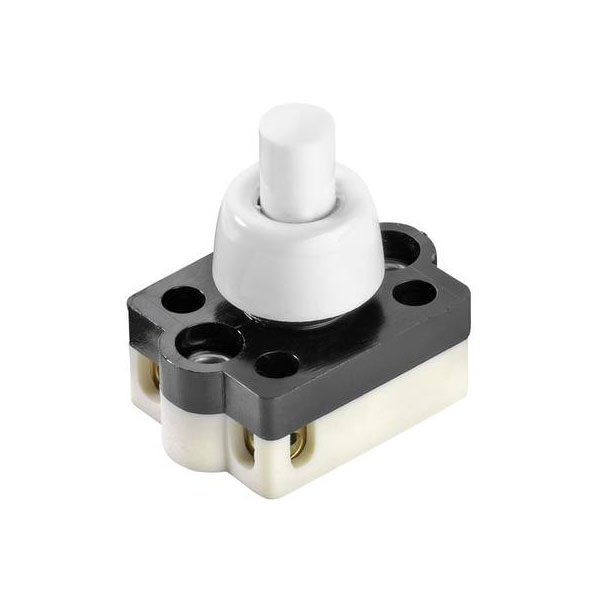

interBär 3076-001.01 Pushbutton Switch 250V AC 2A Off/On Latch

The interBär 3076-001.01 is a panel-mount serial pushbutton switch designed for use in electrical circuits requiring 250 V AC and 2 A. It features a 1-pole switching sequence with an off/on latch mechanism, suitable for reliable control applications. Typically used in industrial machinery and equipment, this switch offers robust performance in pressure switch applications.

Type	Serial pushbutton switch
Contact Configuration	1 x Off/On
Switch Function	1 maker
Current Rating	2A
Mounting	Panel
Board thickness (max.)	8mm
Casing/button Colour	White
Lighting Type	None
Maximum Temperature	+100°C
Misc Attribute 1	1-pole (switching sequence 0/1/1 + 2/2/0)
Recess Diameter	12mm
Switch/button features	Protruding
Switching Capacity	2 A/250V AC
Switching Voltage	250V AC
Temperature Range	max. 100°C
