Infineon Technologies BTS721L1XUMA1 Power Distribution Switch High Side DSO 20

Infineon Technologies BTS721L1XUMA1 is a high-side power distribution switch that is part of the company's -generation product line. This device, also identified by the alternate description 3028355, is encapsulated in a compact DSO 20 package, making it suitable for space-constrained applications. The BTS721L1XUMA1 is designed to provide robust and efficient power management, featuring advanced protection and diagnostic capabilities such as overcurrent, overtemperature protection, and load current measurement. Its typical applications include automotive systems, where reliable electronic power distribution is critical, as well as industrial electronic systems requiring precise control and monitoring of high-side loads. This high-side switch is meticulously engineered to meet stringent quality standards, making it suitable for demanding environments where performance and reliability are paramount.

Type	PMIC - power distribution
Input Type	Non-inverting
Output Type	N-channel
Current output (max.)	2.5A

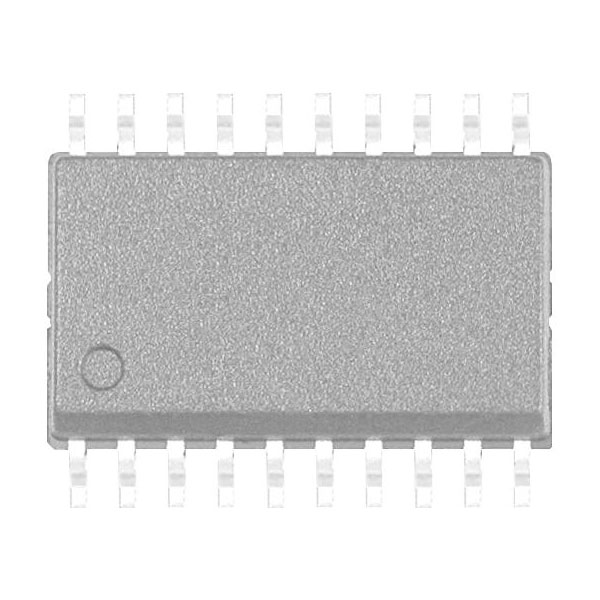

Enclosure	DSO 20
I/O ratio	1:1
No. of outputs	4
Operating temperature (max.)	+150°C
Operating temperature (min.)	-40°C
Output	High side
Product Type	PMIC - power distribution
R(DS)(on)	85mΩ
Switching type	General purpose
Voltage load (max.)	34V
Voltage load (min.)	5V
