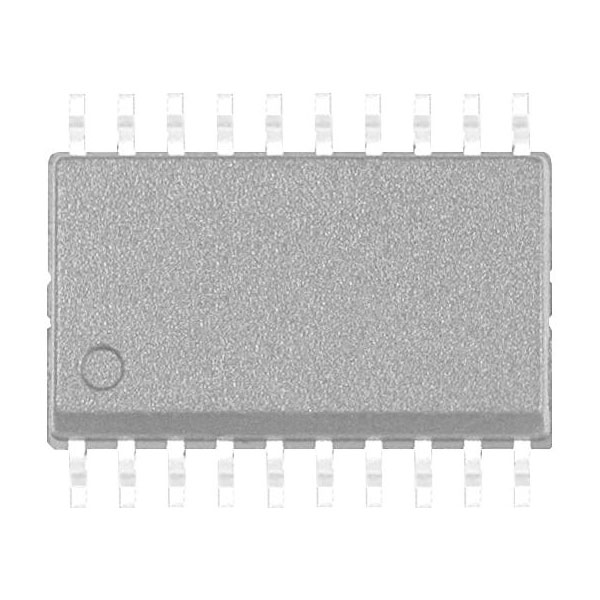

Infineon BTS711L1XUMA1 PMIC Power Distribution High side DSO 20 Load Driver

Infineon Technologies BTS711L1XUMA1, also referred to as 3028354, is in the domain of power management integrated circuits, specifically designed as a high-side load driver. This component is housed in a DSO 20 package and is engineered to facilitate effective power distribution with capabilities to handle high current loads while providing protection features such as overcurrent, overtemperature, and short-circuit protection. These features ensure reliability and robustness, making it ideal for various automotive applications, including controlling solenoids, motors, and other inductive loads. Additionally, the BTS711L1XUMA1's versatility extends its usability in industrial automation systems, where precise power management is critical.

Type	PMIC - power distribution
Input Type	Non-inverting
Output Type	N-channel
Current output (max.)	1.7A
Enclosure	DSO 20
I/O ratio	1:1
Interfaces	On/Off
Maximum Operating Temperature	+150°C
No. of outputs	4
Operating temperature (min.)	-40°C
Output	High side
Product Type	PMIC - power distribution
R(DS)(on)	165mΩ
Switching type	General purpose
Voltage load (max.)	34V
Voltage load (min.)	5V
