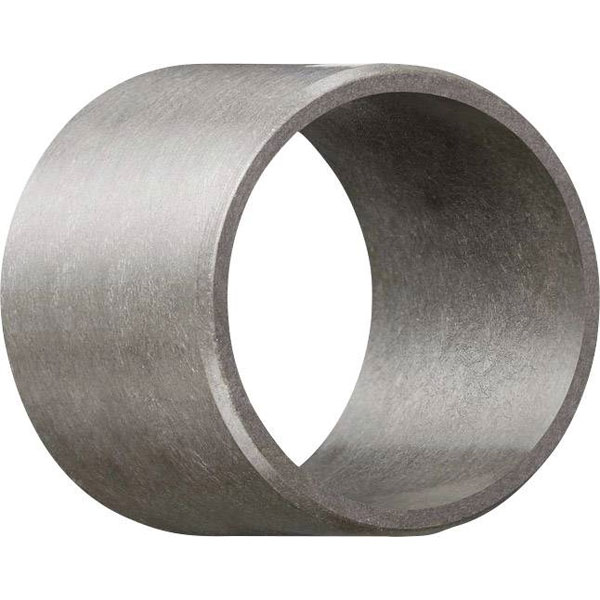

igus GSM-0507-05 iglidur Plain Bearing 5mm Bore High Load Medium Speed

The igus GSM-0507-05 is a plain bearing with a bore diameter of 5 mm, designed for smooth rotary and linear movements. This maintenance-free bearing is ideal for applications where low friction and resistance to wear are critical. Typically used in industrial machinery and automation systems, it helps ensure efficient operation.

Type	Plain bearing
Bore Size	5mm
Outside Diameter	7mm
COF (kinetic, against steel) (max.)	0.15 µ
COF (kinetic, against steel) (min.)	0.08 µ
Linear speed (max.)	4m/s
Maximum Temperature	130°C
Min. temperature	-40°C
Oscillating speed (max.)	0.7m/s
Rotational speed (max.)	1m/s
Series	GSM
