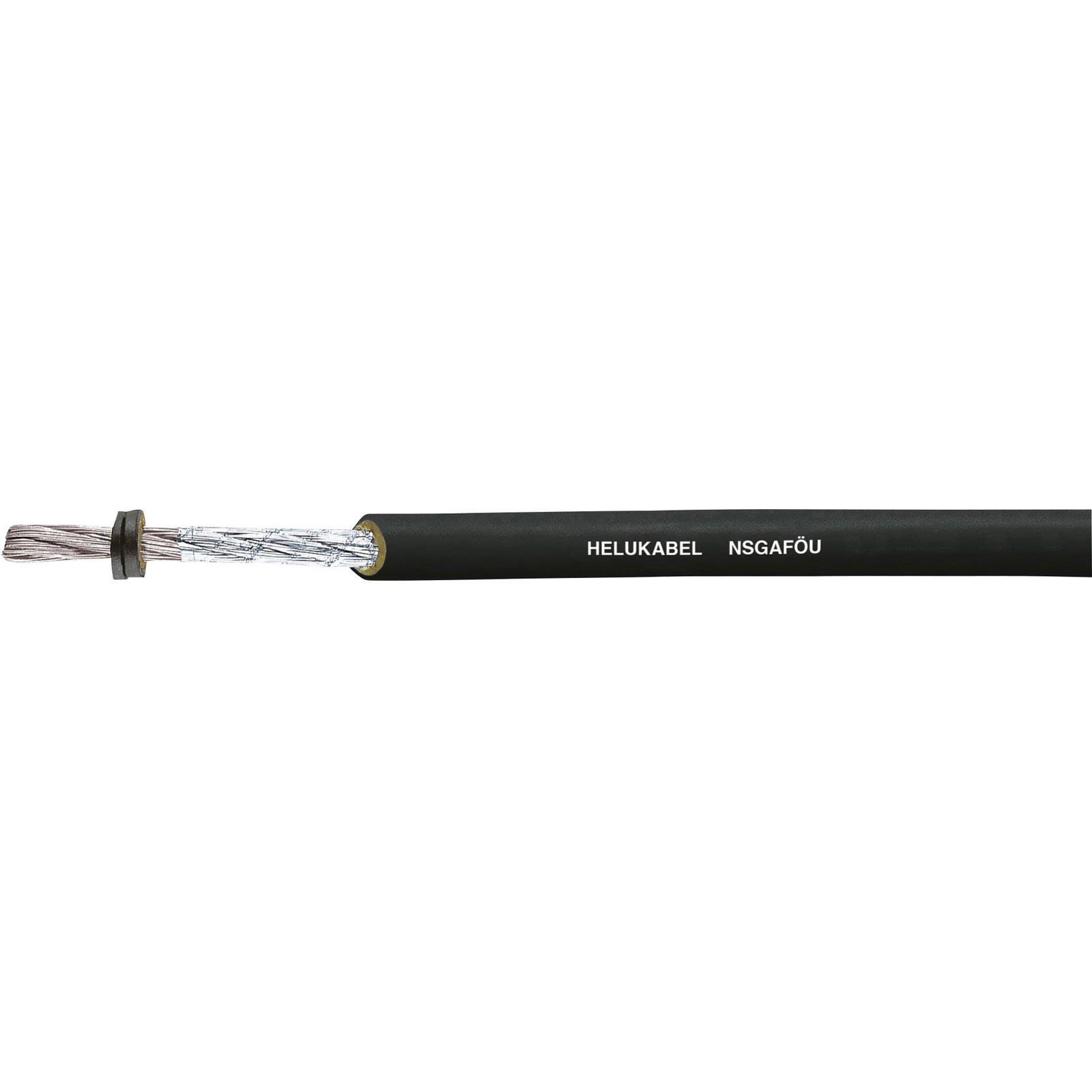

Helukabel's 38503 wire core features a 4 mm² cross-section with a black sheath, designed for short-circuit and ground-circuit protection. Rated at 3 kV, this wire is ideal for robust electrical applications requiring enhanced safety. It is typically used in industrial settings for reliable power distribution and connection.
| Insulation material |
Rubber |
| Bend radius (no. of ODs for fixed installation) |
6 |
| Bend radius (no. of ODs for flexible installation) |
10 |
| Cable type |
NSGAFÖU |
| Certification marks |
DIN VDE 0482-332-1-2, DIN EN 60332-1-2/IEC 60332-1 (according to DIN VDE 0472 Part 804 Test Type B) |
| Core layout |
Copper stranded conductor, tinned, according to DIN VDE 0295 Class 5, stranded |
| Cross section |
1 x 4 mm² |
| Cross section (each core) |
4mm² |
| Factory colour |
Black |
| Halogen-free |
No |
| Manufacturer part # |
38503 |
| Max. length sold by the metre |
100m |
| Max. temperature range (fixed installation) |
+80°C |
| Max. temperature range (flexible installation) |
+80°C |
| Min. temperature range (fixed installation) |
-40°C |
| Min. temperature range (flexible installation) |
-25°C |
| Misc Attribute |
NSGAFÖU |
| No. of leads |
1 |
| Nominal voltage |
1800V |
| Nominal voltage U0 |
1800V |
| Outside Ø |
9mm |
| Packaged |
No |
| Shielded |
No |
| Sold per metre |
Yes |
| Test voltage |
6000V |
| Type |
Wire core |
