Harting Inserts for Staf® Series Industrial Connectors

Harting Brand: Harting

The Harting Staf® series consists of slim rectangular connectors for low voltages.

Staf® inserts are available with 6, 14 or 20 contacts with screw terminals (1.5 mm²) or solder terminals (2.5 mm²). The connectors are rated at 10A and 50V.

  • 6, 14 or 20 contacts
  • Screw or solder terminals
  • Rated at 10A and 50V
  • Please see the Technical Specification table for full details
Description Image Product Buy Pricing (Ex VAT) Type ECHA SCIP number Gender Number of Contacts Number of pins Number of Ways Size Category Colour (insert) Conductor cross-section (mm²) Contact Resistance ELV status Insulation Resistance Limiting temperature Material (contacts) Material (insert) Material flammability class acc. to UL 94 Mating cycles Maximum Temperature Min. temperature

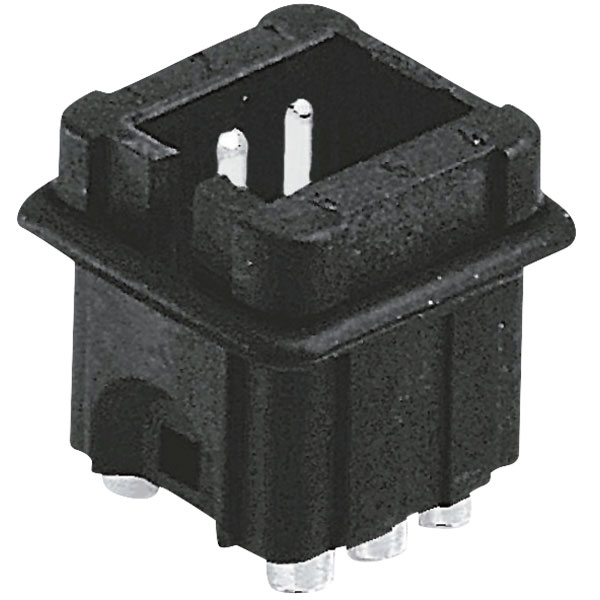

Harting 09 70 006 2616 STAF 6 Industrial Series Insert Male (F) 6 Way Screw
Harting 09 70 006 2616 STAF 6 Industrial Series Insert Male (F) 6 Way Screw
Standard range
Order code: 51-9992
MPN: 09 70 006 2616

Order in multiples of 10


Despatched within 4 working days - 75 in stock
10+ £6.70
20+ £5.37
Price per unit Ex VAT 		Pin inset be45dcda-0f90-459a-a8bc-78fb7986a295 Male 6 6 6 3 A Inserts Black 1.5mm² = 2 mO compliant with exemption >1010O -40 ... +100 °C Copper alloy Polyamide (PA) HB = 500 +125°C -40°C
Harting 09 70 006 2813 STAF 6 Industrial Series Insert Female (M) 6 Way Screw
Harting 09 70 006 2813 STAF 6 Industrial Series Insert Female (M) 6 Way Screw
Standard range
Order code: 52-0023
MPN: 09 70 006 2813

Order in multiples of 10


Despatched within 4 working days - 25 in stock
10+ £8.78
20+ £8.69
Price per unit Ex VAT 		Spring 2d50e7aa-ec67-400d-80d7-e815e7cdf940 Female 6 6 6 3 A Inserts Black 1.5mm² = 2 mO compliant with exemption >1010O -40 ... +100 °C Copper alloy Polyamide (PA) HB = 500 +125°C -40°C
Harting 09 70 014 2811 STAF 14 Industrial Series Insert Female (M) 14 Way Screw
Harting 09 70 014 2811 STAF 14 Industrial Series Insert Female (M) 14 Way Screw
Standard range
Order code: 52-0077
MPN: 09 70 014 2811

Despatched same day - 1 in stockContact us for additional stock
1+ £22.30
5+ £21.62
10+ £21.39
Price per unit Ex VAT 		Spring b51e5b97-eeb5-438b-8538-f1771d43c17d Female 14 14 14 10 A Inserts Black 1.5mm² = 2 mO compliant with exemption >1010O -40 ... +100 °C Copper alloy Polyamide (PA) HB = 500 +125°C -40°C
Order codeHarting part numberDescriptionSeries, insertNumber of contactsWire gauge, max.Wire gauge AWG, max.GenderTermination methodSize
51-999209 70 006 2616 Staf 06 Pos. M Insert ScrewStaf® 661.5mm2AWG 16MaleScrew terminal3 A
52-002309 70 006 2813 Staf 06 Pos. F Insert ScrewStaf® 661.5mm2AWG 16FemaleScrew terminal3 A
52-007709 70 014 2811 STAF 14 FE-SStaf® 1414--FemaleScrew terminal10 A
