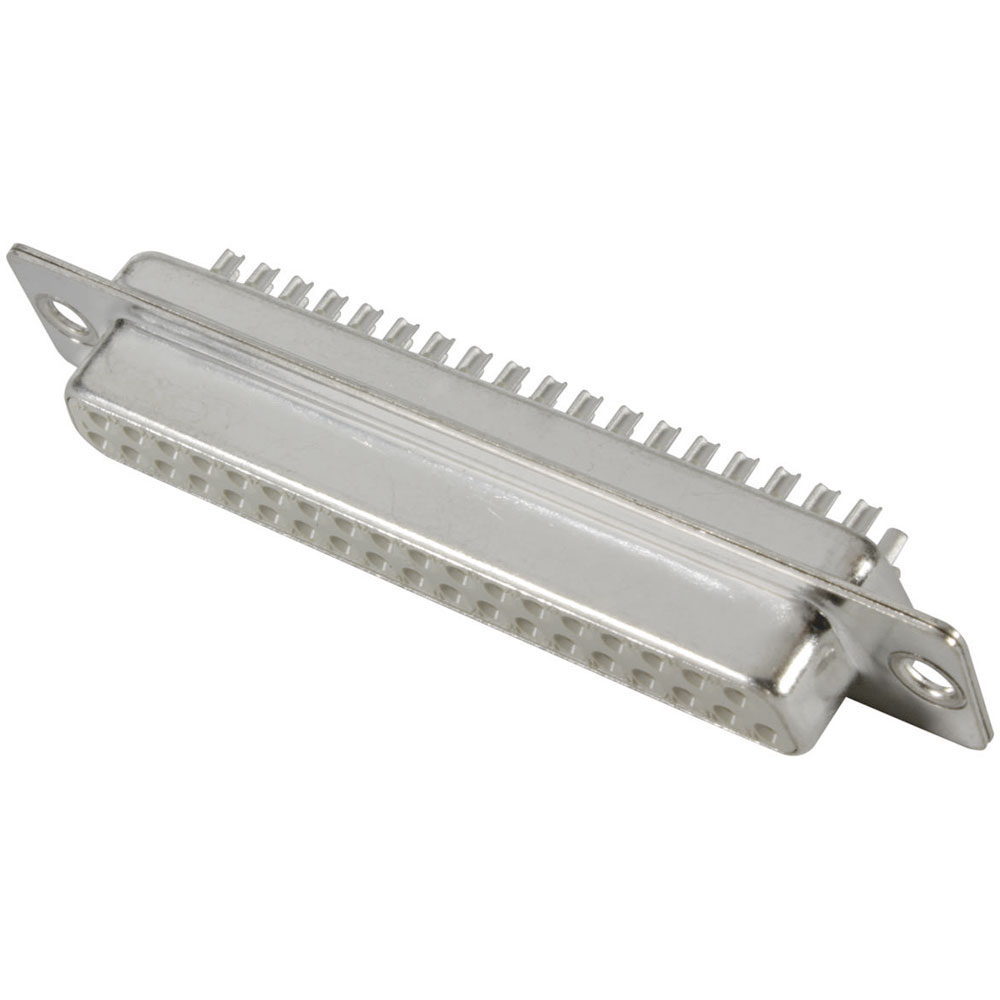

Harting 09670254707 is a precision-engineered D-Sub connector specifically designed with 25 pins to offer reliable electrical connectivity in various industrial applications. This connector employs a wire wrap termination method, which is favoured for its robust connection integrity and ease of installation in complex circuits. Ideal for use in data communication and signal processing, the connector ensures durability and consistent performance under demanding operational conditions. Its design adheres to industry standards, making it suitable for integration in telecommunications equipment, computer systems, and embedded electronic devices. By maintaining a compact form factor, the Harting 09670254707 supports space-constrained environments where efficient electrical distribution is essential.
| Plug / Socket |
Socket, straight |
| Mounting Type |
BackShell Mounting |
| No. of Ways |
25 |
| Connection Angle |
180° |
| Plating Material |
Precious metal |
| Category |
Connectors |
| Clearance distance |
= 1mm |
| Colour |
White |
| Colour (insert) |
White |
| Connection |
Wire wrap |
| Connection Type |
PCB to cable |
| Contact Material |
Copper alloy |
| Contact Resistance |
= 10 mO |
| Contact Type |
Machined contacts |
| Content |
1 |
| Creepage distance |
= 1mm |
| Description of the contact |
Turned |
| Distance between rows |
2.54mm |
| ECHA SCIP number |
ecef7555-f643-4ceb-a337-fc54762297f1 |
| Element |
Connector |
| ELV status |
compliant with exemption |
| Fire protection on railway vehicles |
EN 45545-2 (2020-08) + A1 (2023-10) |
| Gender |
Female |
| Hot plugging |
No |
| Identification |
Standard |
| Insertion force |
= 83 N |
| Insulation Resistance |
>1010O |
| Isolation group |
IIIa (175 = CTI < 400) |
| Limiting temperature |
-55 ... +125 °C |
| Locking type |
Fixing flange with feed through hole Ø 3.1mm |
| Material (contacts) |
Copper alloy |
| Material (insert) |
Thermoplastic resin, glass-fibre filled (PBTP) |
| Material flammability class acc. to UL 94 |
V-0 |
| Mating cycles |
= 50 |
| Product Type |
Connector |
| Rated current |
? 7.5 A |
| REACH ANNEX XIV substances |
Not contained |
| REACH Annex XVII substances |
Not contained |
| Requirement set with Hazard Levels |
R26 |
| Series |
D-Sub |
| Size |
D-Sub 3 |
| Specifications |
DIN 41652 |
| Surface (contacts) |
Noble metal over Ni |
| Termination length |
13.65mm |
| Termination Method |
Wrap termination |
| Test voltage Ur.m.s. |
1 kV |
| UL / CSA |
UL 1977 ECBT2.E102079 |
| Withdrawal force |
= 7.8 N |
