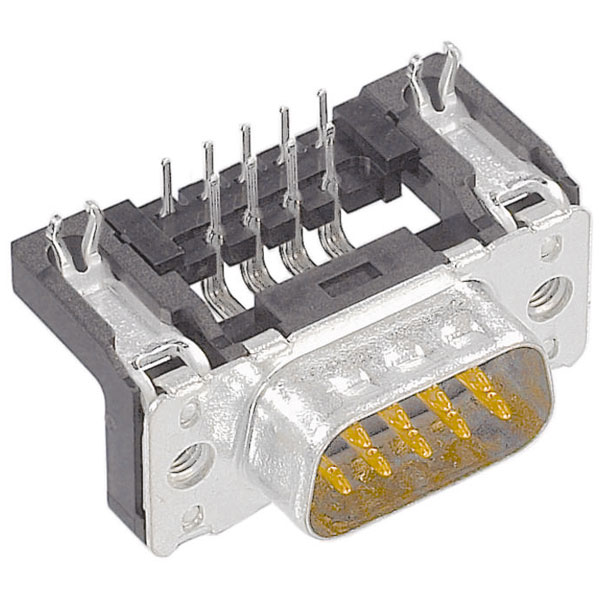

Harting 09653627811 is a reliable D-Sub connector designed for various engineering applications where a 25-pin configuration is required. This connector, identified by its alternate description as Harting 09 65 362 7811, features a robust grey plastic housing that ensures durability and protection in demanding environments. Engineered for soldering, it provides secure and stable electrical connections, making it suitable for use in telecommunications, networking equipment, and industrial control systems. Its versatility and high-quality construction make it an ideal choice for professionals seeking dependable performance in complex electronic assemblies.
| Plug / Socket |
Plug, right angle |
| Mounting Type |
BackShell Mounting |
| No. of Ways |
25 |
| Mounting Direction |
90 Degree |
| Connection Angle |
90° |
| Plating Material |
Precious metal |
| Category |
Connectors |
| Clearance distance |
= 1 mm |
| Colour |
Black |
| Colour (insert) |
Black |
| Connection |
Soldering |
| Connection Type |
Motherboard to daughtercard |
| Contact Material |
Copper alloy |
| Contact Resistance |
= 10 mO |
| Contact spacing (termination side) |
2.76 mm |
| Contact Type |
Punched contacts |
| Content |
1 |
| Creepage distance |
= 1 mm |
| Cross Section |
2.76mm |
| Description of the contact |
Stamped |
| Distance between rows |
2.54 mm |
| Element |
Connector |
| ELV status |
compliant |
| Fire protection on railway vehicles |
EN 45545-2 (2020-08) + A1 (2023-10) |
| further contacts |
With grounding pin |
| Gender |
Male |
| Hot plugging |
No |
| Identification |
Standard |
| Insertion force |
= 83 N |
| Installation height |
? 7.3 mm |
| Insulation Resistance |
>1010O |
| Isolation group |
IIIa (175 = CTI < 400) |
| Limiting temperature |
-55 ... +125 °C |
| Locking type |
Fixing flange with thread M3 |
| Material (contacts) |
Copper alloy |
| Material (insert) |
Thermoplastic resin, glass-fibre filled (PBTP) |
| Material flammability class acc. to UL 94 |
V-0 |
| Mating cycles |
= 50 |
| PCB fixing |
With board locks |
| PCB Thickness |
=1.6 mm |
| Product Type |
Connector |
| Rated current |
? 6.5 A |
| REACH ANNEX XIV substances |
Not contained |
| REACH Annex XVII substances |
Not contained |
| REACH SVHC substances |
Not contained |
| Requirement set with Hazard Levels |
R26 |
| Series |
D-Sub |
| Size |
D-Sub 3 |
| Specifications |
DIN 41652 |
| Surface (contacts) |
Noble metal over Ni |
| Termination length |
2.9 mm |
| Termination Method |
Wave soldering termination |
| Test voltage Ur.m.s. |
1 kV |
| Tightening torque |
=0.6 Nm Female screw lock |
| UL / CSA |
UL 1977 ECBT2.E102079 |
| Withdrawal force |
= 7.8 N |
