Harting 09161072101 Han Connector Crimp simplifies control installation

Harting
Order Code:

03-9485

Brand: Harting MPN: 09161072101 EAN-13: 2050007665137
Qty Unit Price (Ex VAT)
1+ £19.41
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
15 in stock, despatched in 4 working days

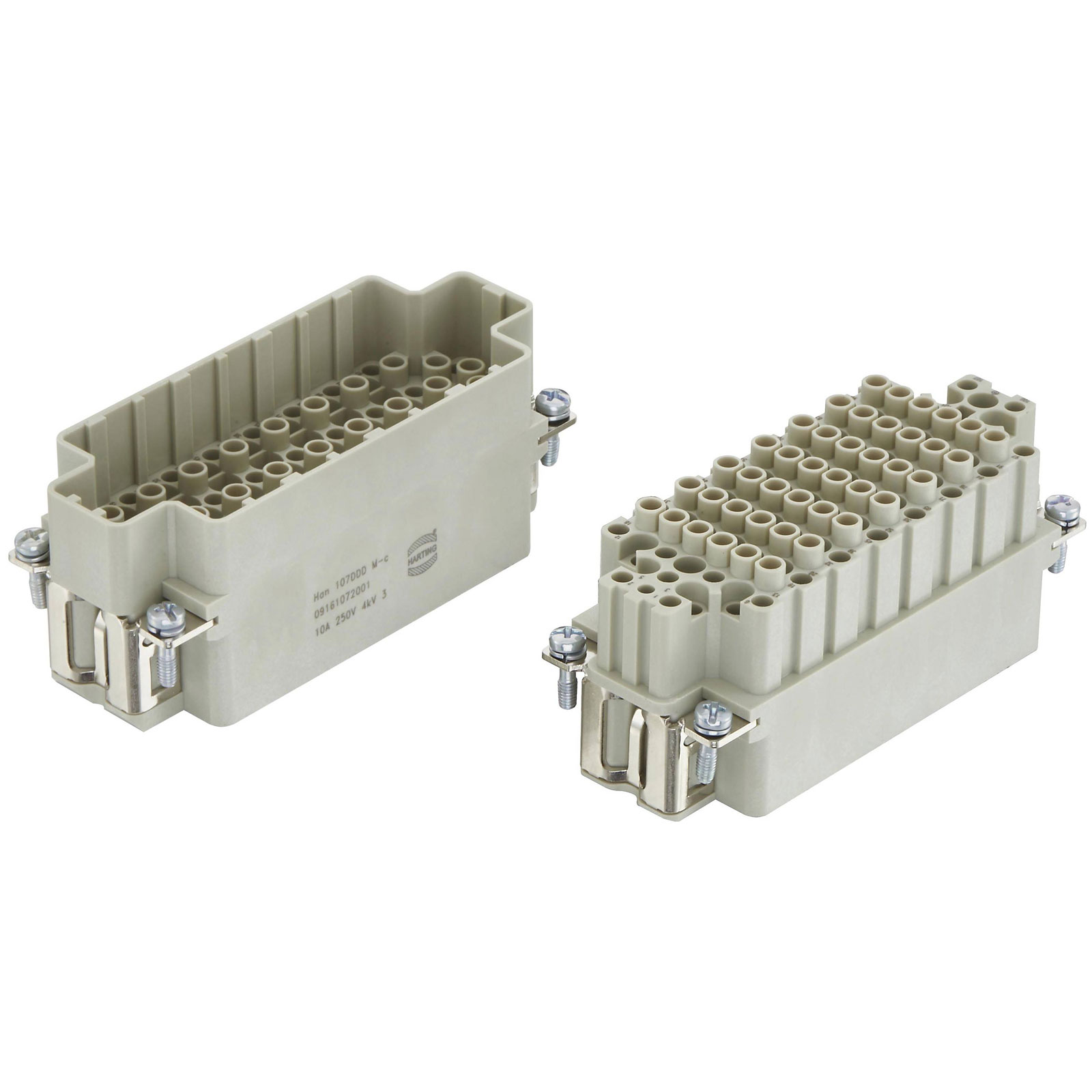

The Harting high voltage 09161072101 connector is a heavy-duty, multi-core industrial connector designed for demanding electrical engineering applications. This industry-grade connector is ideal for ensuring reliable and secure connections in harsh environments. Typical applications include use in manufacturing plants and other industrial settings requiring robust and durable connectivity solutions.
Type Connector
Size 16 B
Category Inserts
Colour (insert) RAL 7032 (pebble grey)
Conductor cross-section (mm²) 0.14 ... 2.5 mm²
Connection Crimp
Details PE connection with a Han D®crimp contact
ELV status compliant
Factory colour Pebble grey (RAL 7032)
Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
Gender Female
Insulation Resistance >1010O
Limiting temperature -40 ... +125 °C
Material (insert) Polycarbonate (PC)
Material flammability class acc. to UL 94 V-0
Mating cycles = 500
Max. temperature +125°C
Min. temperature -40°C
No. of Ways 107 + PE
Number of Contacts 107
PE contact Yes
Rated current ? 10 A
Rated impulse voltage 4 kV
Rated voltage 250V
REACH ANNEX XIV substances Not contained
REACH Annex XVII substances Not contained
REACH SVHC substances Not contained
Requirement set with Hazard Levels R22 (HL 1-3)
Series Han®DDD
Specifications IEC 61984
Termination Method Crimp termination
Test current 10A
UL / CSA UL 1977 ECBT2.E235076
