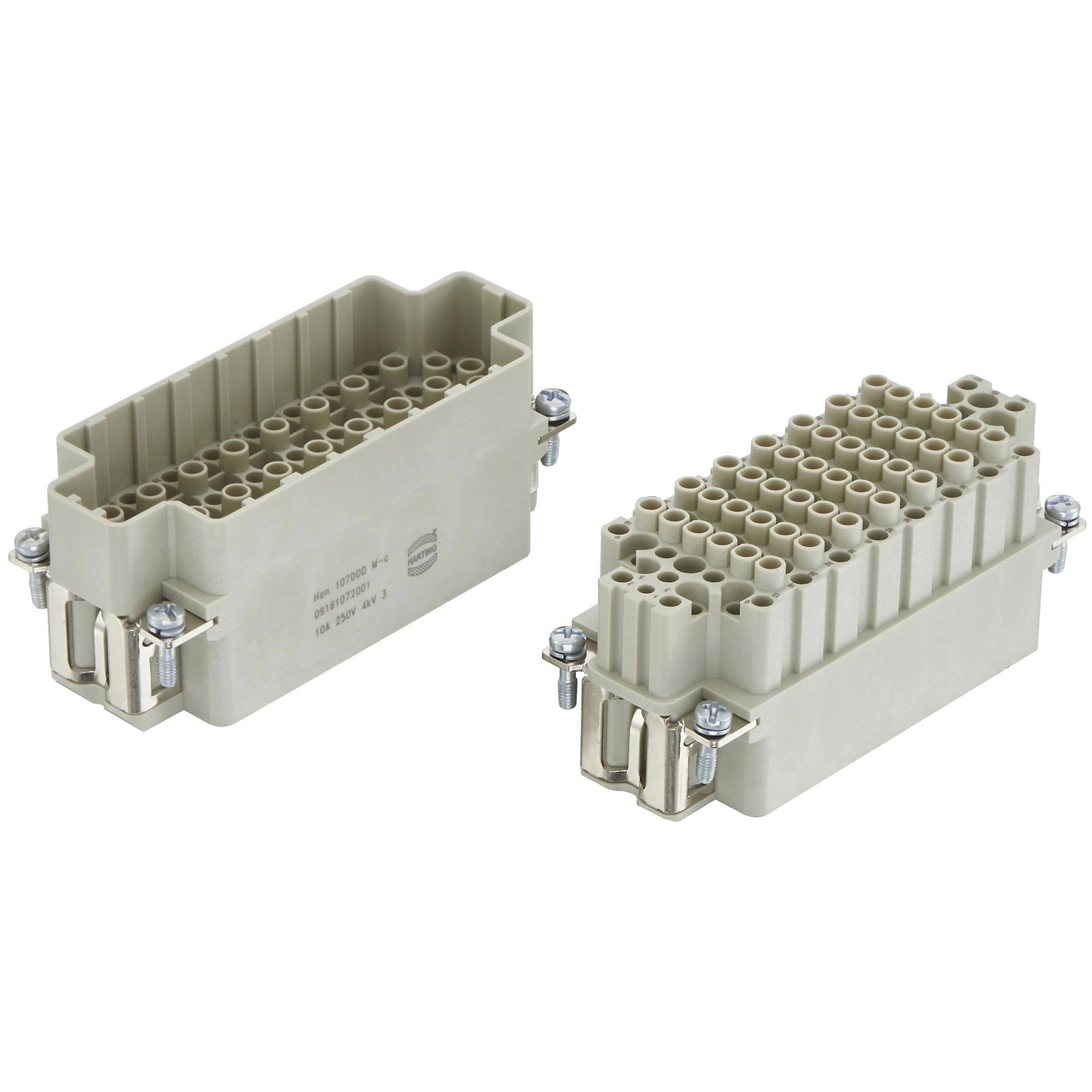

Harting 09161072001 Han Connector Crimp 1pc simplifies cabinet installs

Harting
Order Code:

03-9484

Brand: Harting MPN: 09161072001 EAN-13: 2050007665120
Qty Unit Price (Ex VAT)
1+ £18.85
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

Manufactured by Harting, the 09161072001 is an industrial grade connector designed for high voltage applications. As a heavy duty, multicore connector, it is well-suited for demanding electrical engineering tasks. It is commonly used in industrial environments where reliable and robust connectivity is critical.
Type Connector
Size 16 B
Category Inserts
Colour (insert) RAL 7032 (pebble grey)
Conductor cross-section (mm²) 0.14 ... 2.5 mm²
Connection Crimp
Details PE connection with a Han D®crimp contact
ELV status compliant
Factory colour Pebble grey (RAL 7032)
Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
Gender Male
Insulation Resistance >1010O
Limiting temperature -40 ... +125 °C
Material (insert) Polycarbonate (PC)
Material flammability class acc. to UL 94 V-0
Mating cycles = 500
Max. temperature +125°C
Min. temperature -40°C
No. of Ways 107 + PE
Number of Contacts 107
PE contact Yes
Rated current ? 10 A
Rated impulse voltage 4 kV
Rated voltage 250V
REACH ANNEX XIV substances Not contained
REACH Annex XVII substances Not contained
REACH SVHC substances Not contained
Requirement set with Hazard Levels R22 (HL 1-3)
Series Han®DDD
Specifications IEC 61984
Termination Method Crimp termination
Test current 10A
UL / CSA UL 1977 ECBT2.E235076
