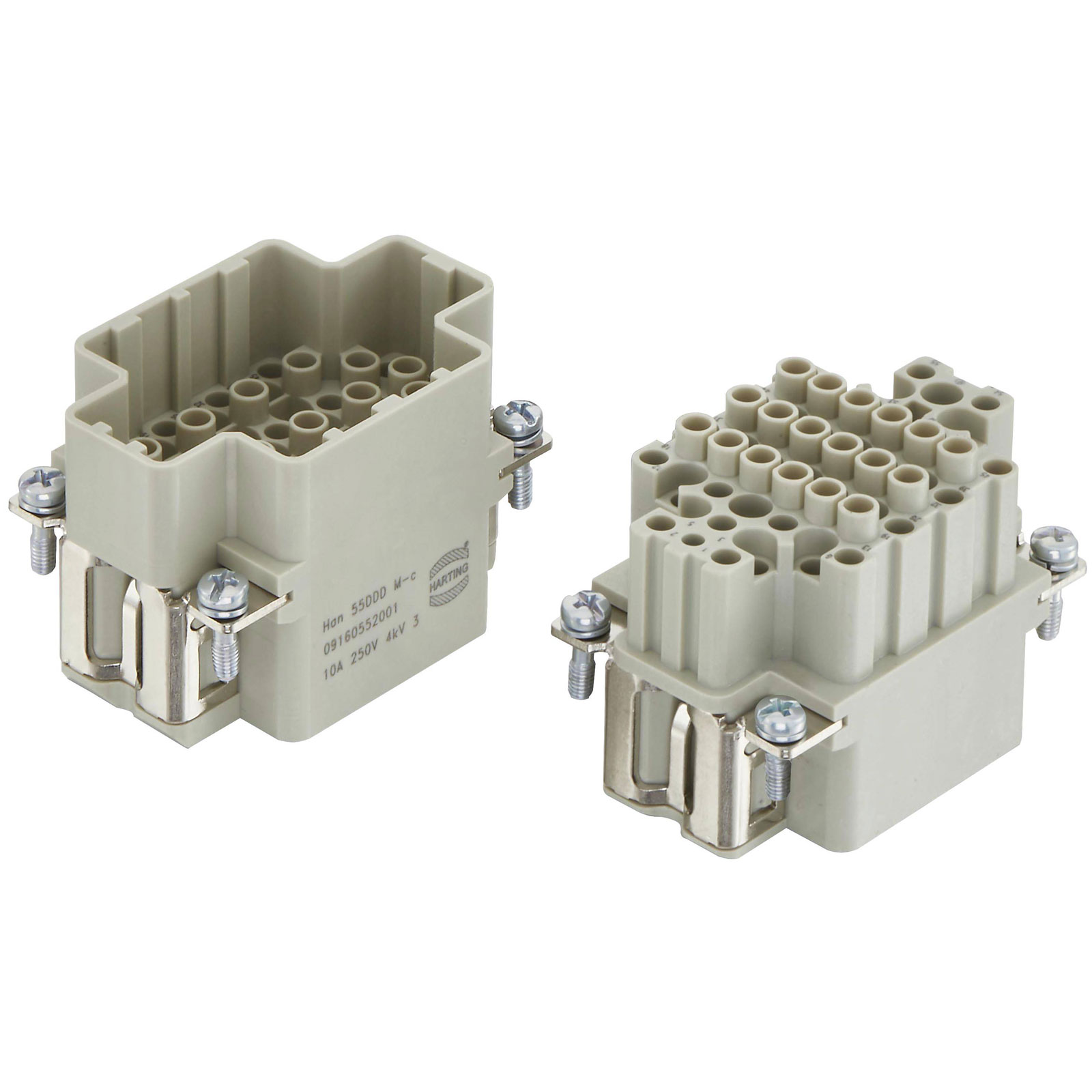

Harting 09160752101 Han Connector Crimp simplifies control cabinet setup

Harting
Order Code:

03-9483

Brand: Harting MPN: 09160752101 EAN-13: 2050007665113
Qty Unit Price (Ex VAT)
1+ £18.06
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

The Harting 09160752101 connector is a high voltage, industrial-grade component designed for heavy-duty applications. With its multicore capability, it is ideal for complex electrical engineering tasks requiring reliable connections. This robust connector is typically used in environments demanding durable and stable connections, such as in industrial and manufacturing settings.
Type Connector
Size 10 B
Category Inserts
Colour (insert) RAL 7032 (pebble grey)
Conductor cross-section (mm²) 0.14 ... 2.5 mm²
Connection Crimp
Details PE connection with a Han D®crimp contact
ELV status compliant
Factory colour Pebble grey (RAL 7032)
Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
Gender Female
Insulation Resistance >1010O
Limiting temperature -40 ... +125 °C
Material (insert) Polycarbonate (PC)
Material flammability class acc. to UL 94 V-0
Mating cycles = 500
Max. temperature +125°C
Min. temperature -40°C
No. of Ways 75 + PE
Number of Contacts 75
PE contact Yes
Rated current ? 10 A
Rated impulse voltage 4 kV
Rated voltage 250V
REACH ANNEX XIV substances Not contained
REACH Annex XVII substances Not contained
REACH SVHC substances Not contained
Requirement set with Hazard Levels R22 (HL 1-3)
Series Han®DDD
Specifications IEC 61984
Termination Method Crimp termination
Test current 10A
UL / CSA UL 1977 ECBT2.E235076
