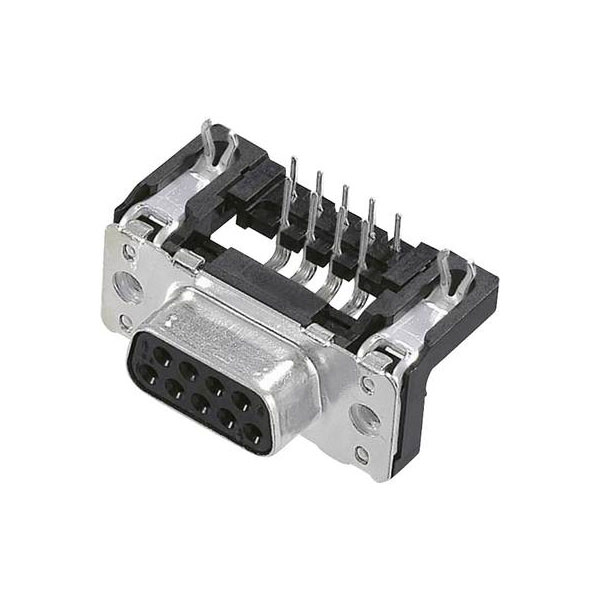

Harting 09 66 152 6611 D-Sub 90 Degree 9 Way 2.54 Pitch

Inc VAT

Qty	Unit Price (Ex VAT)
100+	£2.89

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 100

Despatched within 4 working days - 44 in stock

A high quality 9-way D-sub female connector from Harting.

Type	D-SUB receptacles
Plug / Socket	Socket
Mounting Type	D-sub
No. of Ways	9
Mounting Direction	Right angle
Connection Angle	90°
Plating Material	Tin
Category	Connectors
Clearance distance	= 1mm
Colour (insert)	Black
Connection Type	Motherboard to daughtercard
Connector norm	D-SUB socket
Contact Resistance	= 10 mO
Contact spacing (termination side)	2.74mm
Creepage distance	= 1mm
Description of the contact	Stamped
Distance between rows	2.54mm
Element	Connector
ELV status	compliant
Fire protection on railway vehicles	EN 45545-2 (2020-08) + A1 (2023-10)
further contacts	With grounding pin
Gender	Female
Hot plugging	No
Identification	Standard
Insertion force	= 30 N
Installation height	? 7.3mm
Insulation Resistance	>1010O
Isolation group	IIIa (175 = CTI < 400)
Limiting temperature	-55 ... +125 °C
Locking type	Fixing flange with thread M3
Material (contacts)	Copper alloy
Material (insert)	Thermoplastic resin, glass-fibre filled (PBTP)
Material flammability class acc. to UL 94	V-0
Mating cycles	= 250
No. of Rows	2
Number of pins	9
PCB fixing	With board locks
PCB Thickness	=1.6mm
Pitch	2.54mm
Rated current	? 6.5 A
REACH ANNEX XIV substances	Not contained
REACH Annex XVII substances	Not contained
REACH SVHC substances	Not contained
Requirement set with Hazard Levels	R26
Series	D-Sub
Size	D-Sub 1
Specifications	DIN 41652
Surface (contacts)	Noble metal over Ni
Temperature Range	-55ºC - +125°C
Termination length	2.9mm
Termination Method	Wave soldering termination
Test voltage Ur.m.s.	1 kV
Tightening torque	=0.6 Nm Female screw lock
UL / CSA	UL 1977 ECBT2.E102079
Withdrawal force	= 3.3 N
