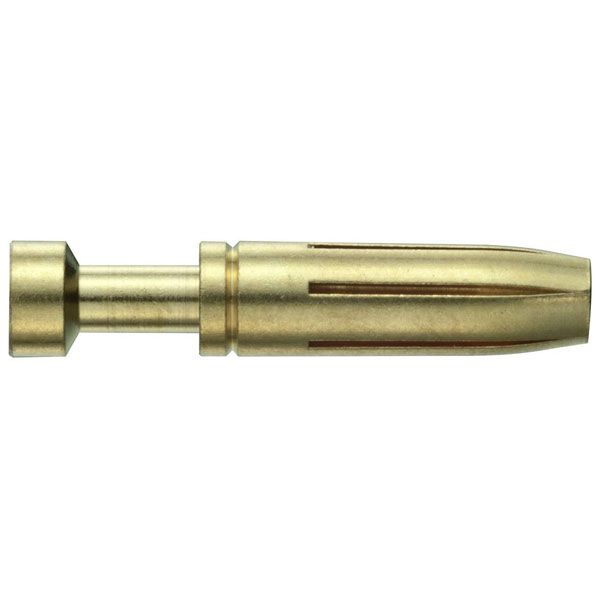

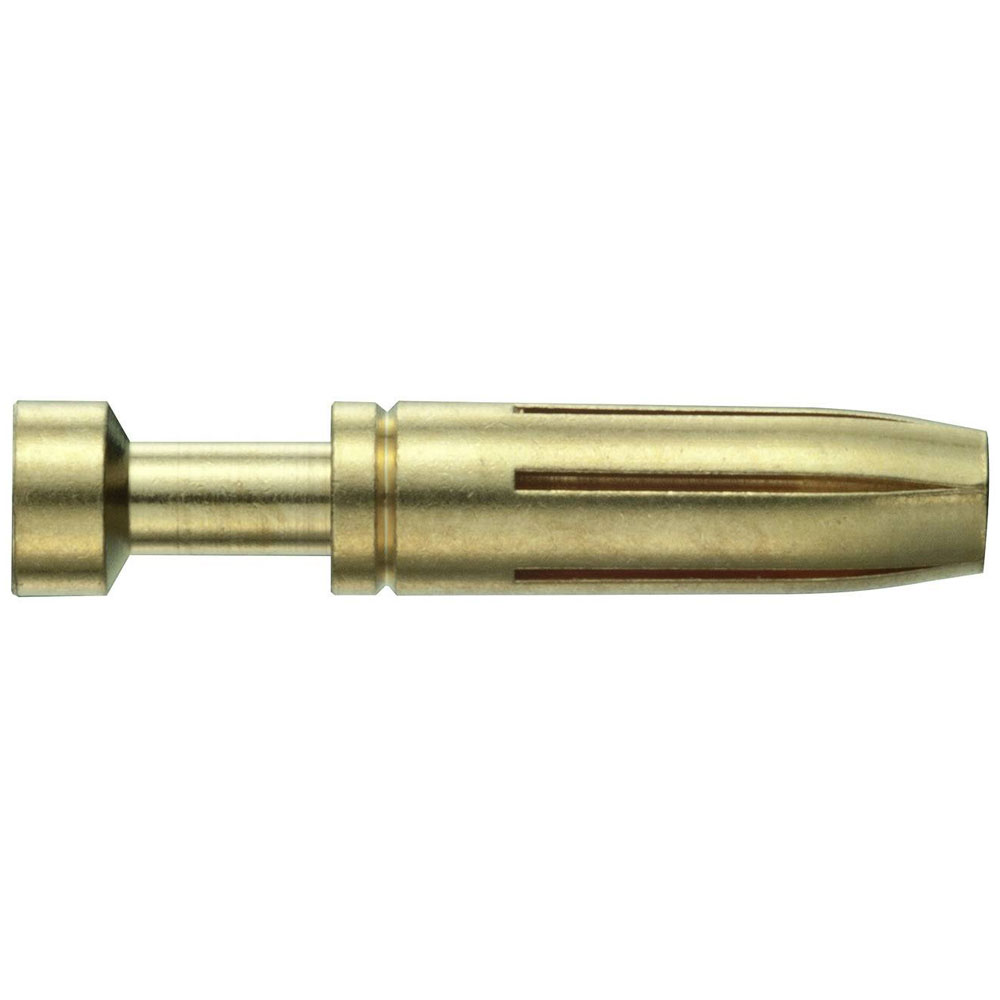

Harting 09 33 000 6215 Jack Single piece set reliable connections

Harting
Order Code:

03-9265

Brand: Harting MPN: 09 33 000 6215 EAN-13: 2050006163290
Qty Unit Price (Ex VAT)
100+ £5.18
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 100
5 in stock, despatched in 4 working days

Harting's 09 33 000 6215 is a high-voltage, industry-grade connector designed for heavy-duty applications. This multicore electrical engineering connector is ideal for use in demanding industrial environments. It typically finds application in situations where robust and reliable connections are essential.
Type Socket pin
Gender Female
Category Contacts
Conductor cross-section (AWG) AWG 18
Conductor cross-section (mm²) 0.75 mm²
Contact identification 1 groove On the back crimp collar
Contact Resistance = 1 mO
ECHA SCIP number b51e5b97-eeb5-438b-8538-f1771d43c17d
Elv status compliant with exemption
Manufacturing process Turned contacts
Material Copper alloy
Material (contacts) Copper alloy
Misc Attribute 09330006215
Rated current = 16 A
REACH ANNEX XIV substances Not contained
REACH Annex XVII substances Not contained
Series Han E®
Specifications IEC 60664-1
Stripping length 7.5 mm
Surface (contacts) Gold plated
Termination method Crimp termination
Type of contact Crimp contact
